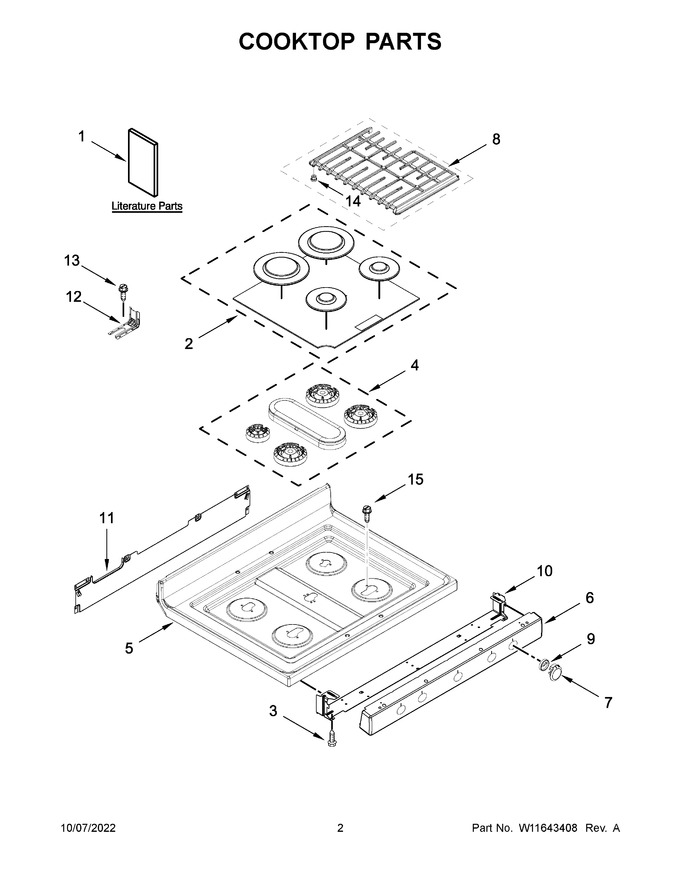

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11597111		Owners Manual		Appelez-nous	-
2	W11834859		Burner Cap Kit (black (set Of 4))   (Replaces: W11352138)		Appelez-nous	-
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	W11662402		Burner Kit   (Replaces: W11367106)			Immediately	$ 130.11
5	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 435.20
6	W11028196		Panel, Manifold (stainless)   (Replaces: W10861559)		Appelez-nous	-
7	W11030413		Knob (stainless)   (Replaces: W10786063)			Immediately	$ 76.20
8	W11381340		Grate Kit (black (set Of 2))   (Replaces: W11241658)				$ 409.84
9	W10814133		Bezel (stainless (kit Of 5))   (Replaces: W10785119)			Immediately	$ 113.38
10	W11379946		Manifold Panel Bracket		Appelez-nous	-
11	W11379358		Rear Gas Cooktop Bracket		Appelez-nous	-
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
13	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
14	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 13.18
15	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
1A	W11597123		Tech Sheet		Appelez-nous	-
1B	W11435643		Quick Start Guide		Appelez-nous	-
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11645866		Harness, Bake And Broil   (Replaces: W11450461)				$ 38.49
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11461074		Harness, Main				$ 176.16
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
