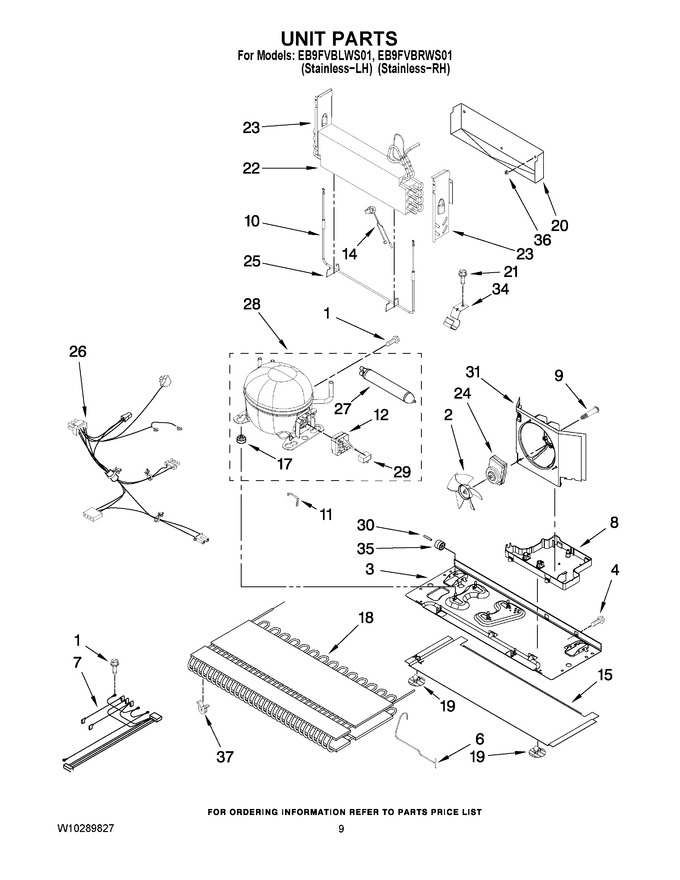

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W10480107 | Basepan (Replaces: W10210982) |
|
$ 147.50 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 6 | W10217744 | Tube, Discharge |
|
$ 53.81 | |||||
| 7 | W10224241 | Harness, Evap. Heater |
|
$ 137.22 | |||||
| 8 | WPW10655367 | Pan, Drain (Replaces: W10189185) |
|
Immediately | $ 85.17 | ||||
| 9 | W10829281 | Screw, Shoulder (Replaces: W10216919) |
|
$ 13.28 | |||||
| 10 | WP12729127 | Evaporator Heater (Replaces: 12729127) |
|
Immediately | $ 109.73 | ||||
| 11 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 11.89 | |||||
| 12 | WPW10197426 | Start Protect, Combo (service) (Replaces: W10136414) |
|
$ 162.06 | |||||
| 12 | WP2320150 | Start Protect, Combo (production) (Replaces: 2320150) |
|
Immediately | $ 89.45 | ||||
| 14 | WPW10165425 | Thermostat, Defrost (Replaces: 12639324SP) |
|
Immediately | $ 74.57 | ||||
| 15 | W10206336 | Extension, Basepan |
|
$ 76.39 | |||||
| 17 | WPW10169124 | Grommet (4) (Replaces: 10835903SP) |
|
Immediately | $ 7.55 | ||||
| 18 | W10346423 | Condenser (Replaces: W10135028) |
|
$ 239.30 | |||||
| 19 | W10206339 | Fastener, Basepan Extension |
|
$ 11.22 | |||||
| 20 | W11337775 | Tray, Drip (Replaces: 12225401WD) |
|
Immediately | $ 99.07 | ||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| 22 | 12726401 | Evaporator |
|
- | |||||
| 23 | 12225602 | Dam (left Side) |
|
$ 14.66 | |||||
| 23 | 12225702 | Dam (right Side) |
|
$ 14.09 | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 12825101) |
|
Immediately | $ 143.68 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 26 | WPW10234024 | Harness, Unit (Replaces: W10234024) |
|
$ 308.35 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10130129 | Compressor Kit (contains Items 12, 17, 27, & 29) |
|
- | |||||
| 29 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 31 | W11556315 | Shroud (Replaces: W10189184) |
|
$ 83.64 | |||||
| 34 | 10547003 | Clip, Drier |
|
- | |||||
| 35 | 12477102 | Roller (2) |
|
Immediately | $ 7.38 | ||||
| 36 | 10623002 | Clip, Evap (2) |
|
$ 12.11 | |||||
| 37 | WPW10137529 | Grommet (4) (Replaces: W10137529) |
|
$ 8.76 | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2) |
|
- | |||||
| NI | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (5.25 Ozs.(r-134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 |
