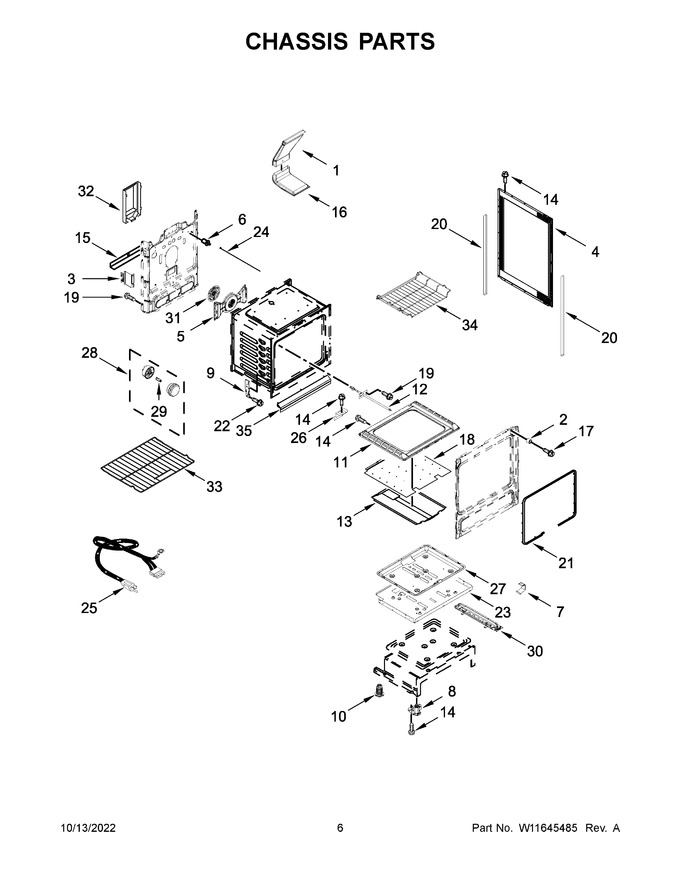

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10314347 | Assembly, Flue |
|
$ 302.53 | |||||
| 2 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 3 | W10273002 | Bracket, Oven Support |
|
$ 76.34 | |||||
| 4 | WPW10575396 | Panel, Side (white) (Replaces: W10575396) |
|
$ 148.71 | |||||
| 5 | W11676564 | Baffle, Full Convection (Replaces: W10346153) |
|
$ 234.02 | |||||
| 6 | W11620712 | Switch, Door (Replaces: W11511828) |
|
$ 46.31 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 8 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 9 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 10 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 11 | WPW10211368 | Bottom, Oven (Replaces: W10211368) |
|
Immediately | $ 337.76 | ||||
| 12 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 140.71 | ||||
| 13 | 3601P35645 | Baffle, Bake Burner |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 15 | W10435470 | Brace, Main Back |
|
$ 81.74 | |||||
| 16 | W11243157 | Assembly, Flue (upper) (Replaces: W11040249) |
|
$ 370.35 | |||||
| 17 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 18 | W10323077 | Diffuser, Flame |
|
$ 281.78 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 20 | W11175143 | Gasket (Replaces: W10919715) |
|
Immediately | $ 24.62 | ||||
| 21 | W11562931 | Gasket, Door (Replaces: W11491752) |
|
Immediately | $ 87.76 | ||||
| 22 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 23 | WPW10273195 | Shield, Heat (Replaces: W10273195) |
|
$ 189.86 | |||||
| 24 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 66.87 | ||||
| 25 | W11582239 | Cord, Power (Replaces: W10624590) |
|
$ 17.59 | |||||
| 26 | W10035900 | Support, Oven Bottom |
|
$ 14.36 | |||||
| 27 | W11379356 | Pan, Bake |
|
$ 80.02 | |||||
| 28 | W11594170 | Light Assembly (Replaces: W11544377) |
|
Immediately | $ 35.95 | ||||
| 29 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 30 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 31 | W11043837 | Motor, Fan (convection) (Replaces: W10874067) |
|
Immediately | $ 297.27 | ||||
| 32 | W10158780 | Cover, Rear Fan |
|
$ 118.48 | |||||
| 33 | WPW10531060 | Rack, Oven (Replaces: W10531060) |
|
Immediately | $ 122.16 | ||||
| 34 | W11256463 | Rack, Oven (gull-wing) (Replaces: W10289145) |
|
Immediately | $ 132.50 | ||||
| 35 | W10501599 | Clip, Front Frame Cover |
|
$ 255.95 | |||||
| 30A | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| NI | NP | Box, Burner (not Serviced) |
|
- | |||||
| NI | 4820F01559 | Insulation, Strap |
|
- | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W11688566 | Insulation, Wrap (Replaces: W10526208) |
|
$ 123.60 | |||||
| NI | W11688362 | Insulation, Main Back (Replaces: W10526209) |
|
$ 125.88 |
