01 - Cover Sheet

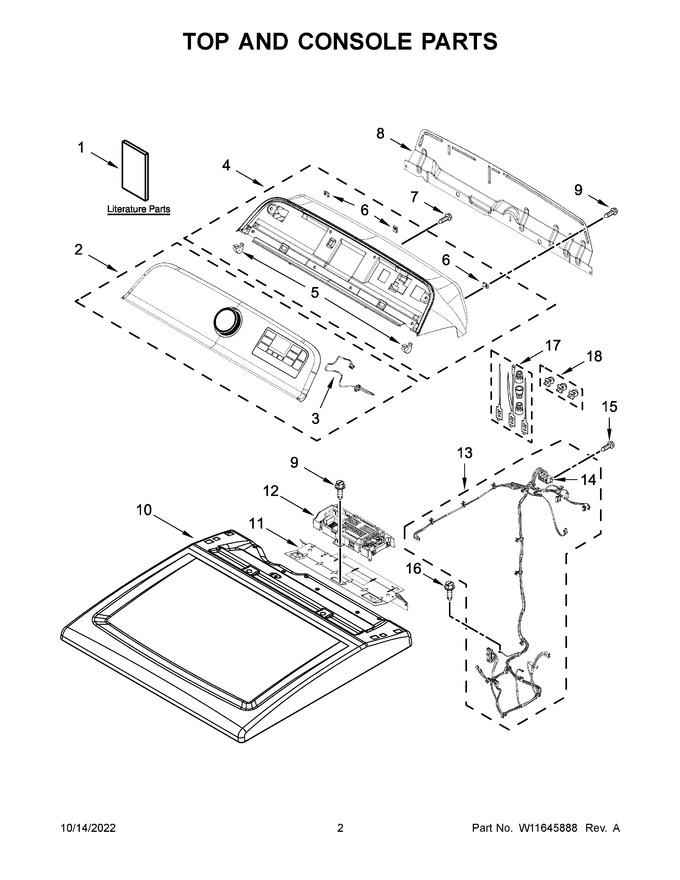

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Dryer Heating Parts-electric


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11555818		Installation Instructions		Appelez-nous	-
2	W11419056		Assembly, Console Fascia (complete)   (Replaces: W11164032)				$ 620.31
3	W11164312		Harness, User Interface (hmi)				$ 167.98
4	W11401363		Console (white)   (Replaces: W11178519)				$ 364.05
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
7	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
8	W11433112		Panel, Rear Console				$ 66.08
9	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
10	W11641121		Top (white)   (Replaces: W11623537)			Immediately	$ 215.10
11	W11431865		Bracket, Electronic Control   (Replaces: W10896068)				$ 57.36
12	W11525997		Appliance Control Unit (acu)   (Replaces: W11496630)			Immediately	$ 357.23
13	W11690904		Harness, Main   (Replaces: W11556657)				$ 235.10
14	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
15	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
16	W10850756		Screw   (Replaces: W10773242)				$ 8.20
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
18	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
10A	W11641122		Top (chrome Shadow)   (Replaces: W11623547)				$ 268.82
1A	W11550670		Quick Start Guide		Appelez-nous	-
4A	W11401366		Console (chrome Shadow)   (Replaces: W11178520)			Immediately	$ 378.62
