Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11233380 Assembly, Fan   (Replaces: W10769486) In-Stock Immediately $ 318.96

2 W10370680 Fitting, Drain Special Order $ 37.83

3 W11235099 Cover, Led Side   (Replaces: W10816886) Appelez-nous -
4 W11233381 Assembly, Led Strip (left Hand)   (Replaces: W10826246) Special Order $ 226.77

5 W11645577 Assembly, Evaporator And Heater (also Order The Following Lokring Parts)   (Replaces: W11351163) Appelez-nous -
6 W10225833 Grommet, Motor Special Order $ 41.69

7 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 7.30

8 W11245103 Cover, Led Top   (Replaces: W10816890) Appelez-nous -
9 W11245104 Strip, Top Led   (Replaces: W10826248) Appelez-nous -
10 W11233384 Assemby, Light Strip   (Replaces: W10914639) In-Stock Immediately $ 205.89

11 W11235114 Assembly, Air Tower Gasket (includes Air Tower)   (Replaces: W11176554) Special Order $ 97.93

12 W11235115 Assembly, Duct Damper (includes Heater)   (Replaces: W10872906) In-Stock Immediately $ 219.64

13 W11036131 Assembly, Air Tower Bracket (includes Rubber Rivets, Washers And Screws) (upper) Appelez-nous -
14 W11245109 Wall, False   (Replaces: W10816929) Appelez-nous -
15 W11235116 Duct, Deli   (Replaces: W10816934) Special Order $ 103.71

16 W11235118 Gasket, Deli Duct   (Replaces: W10916552) Appelez-nous -
17 W11249264 Assembly, Duct (includes Damper)   (Replaces: W10863616) Appelez-nous -
18 W11247700 Harness, Damper   (Replaces: W10810632) Appelez-nous -
19 W11404243 Assembly, User Interface   (Replaces: W11383523) Special Order $ 413.57

20 W11245152 Grille, Air Return   (Replaces: W10847991) Special Order $ 125.17

21 NP Box, Burner (not Serviced) Appelez-nous -
22 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40

23 W11235123 Assembly, Air Tower Panel   (Replaces: W10816938) Special Order $ 379.69

24 W11603843 Reservoir, Water   (Replaces: W11518279) Special Order $ 137.84

25 W11247958 Assembly, Dispenser Cover   (Replaces: W10880332) Special Order $ 120.69

26 WP12575502 Switch, Limit   (Replaces: 12575502) In-Stock Immediately $ 48.74

27 W11247961 Valve, Single Solenoid   (Replaces: W11135656) In-Stock Immediately $ 213.62

28 W11248065 Tube, Dispenser Water   (Replaces: W11233653) In-Stock Immediately $ 127.13

29 W11234825 Ladder, Shelf (includes Screw Guide) (left Hand)   (Replaces: W10905671) In-Stock Immediately $ 154.95

30 W11234826 Thermistor   (Replaces: W11084854) In-Stock Immediately $ 126.39

31 W11235125 Cover, Thermistor   (Replaces: W10912104) Special Order $ 108.10

32 W11234828 Screw (black)   (Replaces: W11288606) Appelez-nous -
33 W11642296 Heater, Defrost   (Replaces: W11312288) Special Order $ 112.62

34 W11553819 Insulation, Sound Deadening   (Replaces: 2169104) In-Stock Immediately $ 14.77

35 W11579165 Tube, Dispenser Water (valve)   (Replaces: W11518280) In-Stock Immediately $ 95.94

36 W11300483 Block, Evaporator Bypass (left Hand)   (Replaces: W11216534) Appelez-nous -
37 W11302578 Crossbar, Control (upper)   (Replaces: W10816924) Appelez-nous -
38 W11642297 Harness, Evaporator (includes Thermistor)   (Replaces: W11574922) In-Stock Immediately $ 116.72

39 W11646145 Assembly, Evaporator Cover (includes Insulation)   (Replaces: W11441794) Appelez-nous -
40 W11299623 Cover, Evaporator Panel U Shape   (Replaces: W10895218) Appelez-nous -
41 W11299416 Cover, Evaporator Insulation   (Replaces: W10780861) Appelez-nous -
42 W11299413 Gasket, Evaporator Panel   (Replaces: W10895214) Appelez-nous -
43 W11302581 Cover, Manifold   (Replaces: W10816945) Appelez-nous -
44 W11300485 Assembly, Evaporator Bypass Block (includes Foil)   (Replaces: W10876967) Appelez-nous -
13A W11036132 Assembly, Air Tower Bracket (includes Rubber Rivets, Washers And Screws) (lower) Appelez-nous -
29A W11234551 Ladder, Shelf (includes Screw Guide) (right Hand)   (Replaces: W10905672) In-Stock Immediately $ 154.95

36A W11300484 Block, Evaporator Bypass (right Hand)   (Replaces: W11216533) Appelez-nous -
37A W11302579 Crossbar, Control (lower)   (Replaces: W10887668) Appelez-nous -
4A W11233382 Assembly, Led Strip (right Hand)   (Replaces: W10901633) Special Order $ 301.28

5A W11504451 (3/1.8 Nr Ms 00) (capillary Tube To Evaporator) In-Stock Immediately $ 46.25

5B W11506619 8 Nk Ms 00 (suction Line To Evaporator) In-Stock Immediately $ 25.88


    View Diagram in Separate Window     Print Icon   Print Part List

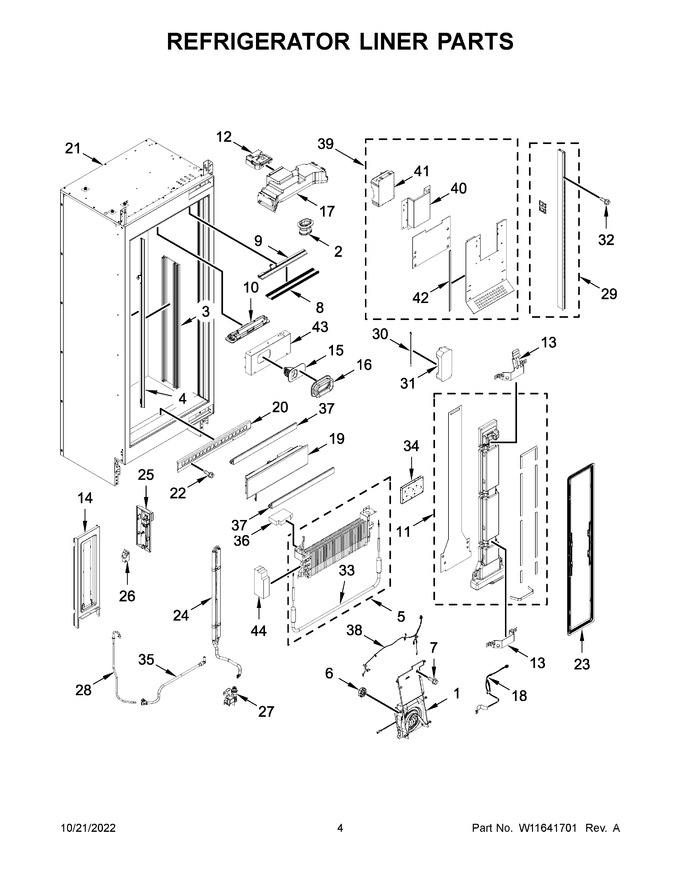

Diagram for JBRFR24IGX10
