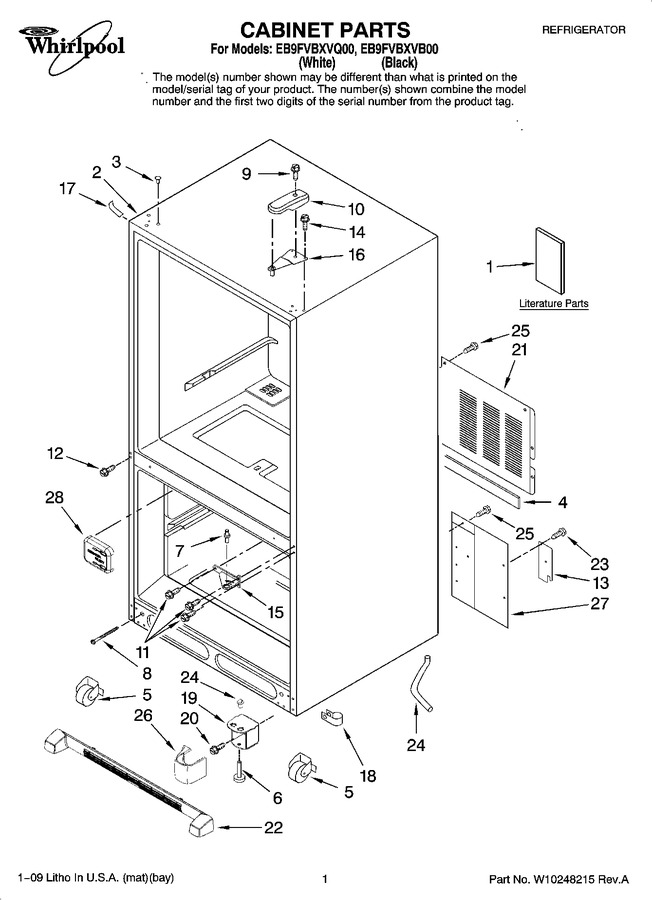

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10200283 | Use & Care Guide |
|
- | |||||
| 1 | 12096308 | Energy Guide |
|
- | |||||
| 1 | W10169671 | Tech Sheet |
|
- | |||||
| 3 | WP67001130 | Plug, Button (3) (white) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 7.76 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 12580304 | Roller Assy. (2) |
|
$ 5.84 | |||||
| 6 | W11177593 | Foot Brake (Replaces: 67003868) |
|
$ 11.60 | |||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 67006744) |
|
$ 8.27 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 67006611) |
|
Immediately | $ 6.74 | ||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.19 | ||||
| 10 | 67001014 | Cover, Hinge (white) |
|
$ 21.28 | |||||
| 10 | 67001012 | Cover, Hinge (black) |
|
$ 47.34 | |||||
| 11 | WP489349 | Screw (Replaces: 67005822) |
|
Immediately | $ 7.88 | ||||
| 12 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.00 | |||||
| 13 | 12479901 | Plate, Cover |
|
- | |||||
| 14 | WP489349 | Screw (3) (Replaces: 67006303) |
|
Immediately | $ 7.88 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 152.73 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 17 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 21.09 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 18 | W10157973 | Clip, Drain |
|
$ 7.80 | |||||
| 19 | 67001918 | Hinge, Bottom |
|
- | |||||
| 20 | 67006564 | Screw (4) |
|
Immediately | $ 7.69 | ||||
| 21 | 67006102 | Cover, Unit |
|
- | |||||
| 22 | 67003849 | Grille, Toe (white) |
|
$ 51.91 | |||||
| 22 | 67003843 | Grille, Toe (black) |
|
$ 51.18 | |||||
| 23 | WP489128 | Screw (Replaces: 67006662) |
|
$ 10.88 | |||||
| 24 | W10164397 | Tube, Drain |
|
$ 14.79 | |||||
| 25 | 67006425 | Screw |
|
Immediately | $ 6.95 | ||||
| 26 | 12561901B | Cover, Lw Hinge (black) |
|
$ 11.62 | |||||
| 26 | 12561901W | Cover, Lw Hinge (white) |
|
$ 6.37 | |||||
| 27 | 67001173 | Cover, Water Valve |
|
- | |||||
| 28 | WP67001098 | Cover, Fill Tube (Replaces: 67001098) |
|
$ 8.03 |
