SELECT A DIAGRAM

01 - Cover Sheet

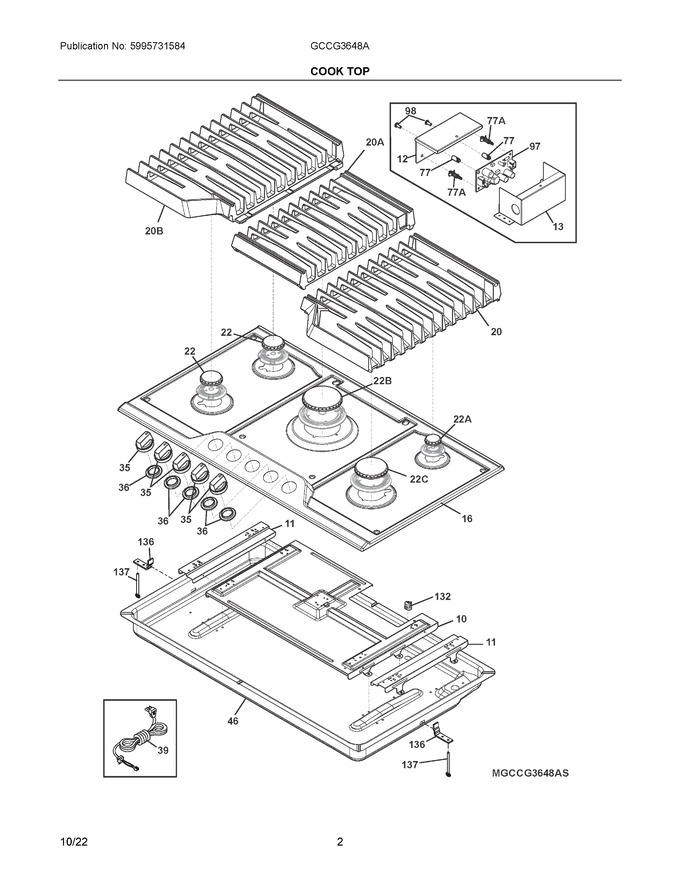

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304533590		Shield, Main Heat		Appelez-nous	-
11	5304533617		Shield, Heat, Side		Appelez-nous	-
12	5304527656		Cover, Smps Board				$ 100.28
13	5304527655		Shield, Heat, Smps Board		Appelez-nous	-
16	5304533647		Maintop, Assembly, Black		Appelez-nous	-
20	5304533646		Grate, Burner, Right Side				$ 302.17
22	5304533596		Cap, Burner, Medium			Immediately	$ 36.29
35	5304533640		Knob, Top Valve, Black, Backlit		Appelez-nous	-
36	5304533580		Cover, Led		Appelez-nous	-
39	305574902		Power Cord, Electrical, Supply				$ 77.18
46	5304527685		Box, Burner		Appelez-nous	-
77	316247900		Spacer, Power Board				$ 49.61
97	5304527657		Pc Board, Smps, Backlit Knobs		Appelez-nous	-
98	305309608		Screw, M4		Appelez-nous	-
132	5304513507		Bushing, Strain Relief				$ 10.11
136	318264301		Support, Box, (2)				$ 47.72
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 13.55
20A	5304533645		Grate, Burner, Center				$ 252.79
20B	5304533644		Grate, Burner, Left Side				$ 301.32
22A	5304533595		Cap, Burner, Small			Immediately	$ 32.13
22B	5304533597		Cap, Burner, Xtra Large			Immediately	$ 51.51
22C	5304533619		Cap, Burner, Large				$ 44.82
77A	316114100		Spacer				$ 67.73
NI	305338602		Screw		Appelez-nous	-
NI	305338604		Screw, 6-32 X 1/4", Back		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	5304533648		Insulation, Cooktop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
