SELECT A DIAGRAM
01 - Cover Sheet
02 - Oven, Cabinet

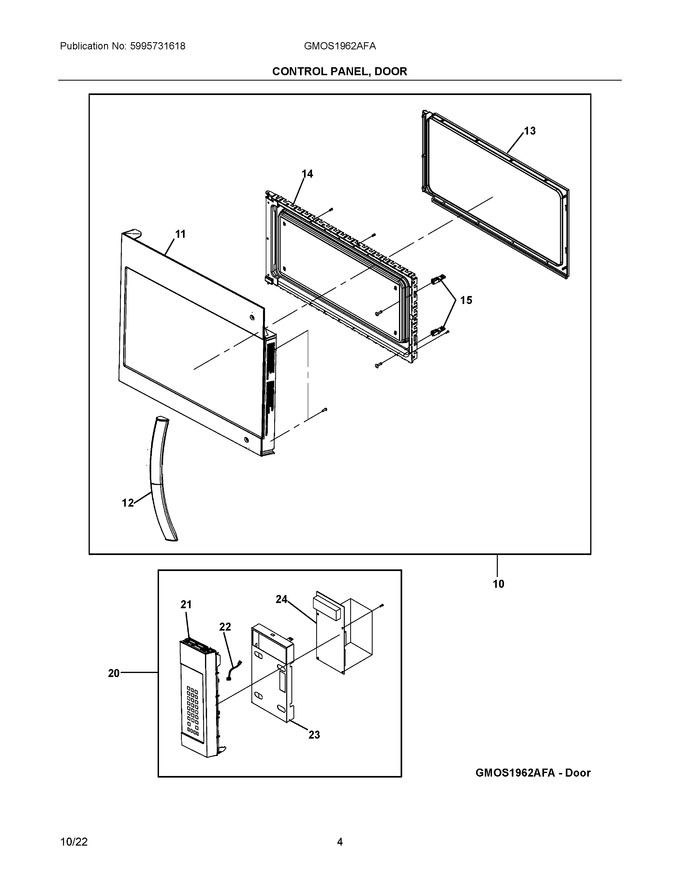

03 - Control Panel, Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304533651 | Door Assembly, Complete, Stainless, W/handle |
|
Immediately | $ 342.34 | ||||
| 11 | 5304533689 | Door Assembly, Outer, Stainless |
|
- | |||||
| 12 | 5304533690 | Handle, Door, Stainless |
|
$ 202.95 | |||||
| 13 | 5304523248 | Gasket, Door |
|
$ 18.21 | |||||
| 14 | 5304523247 | Door Frame, Assembly |
|
$ 169.86 | |||||
| 15 | 5304523249 | Latch, Door |
|
$ 9.74 | |||||
| 20 | 5304533657 | Control Panel, Assembly, Stainless, Complete |
|
Immediately | $ 704.58 | ||||
| 21 | 5304533691 | Control Panel, Assembly, Stainless, Outer, W/touchpad |
|
- | |||||
| 22 | 5304533654 | Harness, Wiring, Connector |
|
- | |||||
| 23 | 5304533652 | Shield, Pc Board |
|
- | |||||
| 24 | 5304533653 | Pc Board, Assembly, Display, Main Control |
|
$ 271.66 |
