01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Icemaker Parts


06 - Refrigerator Shelf Parts


07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Optional Parts

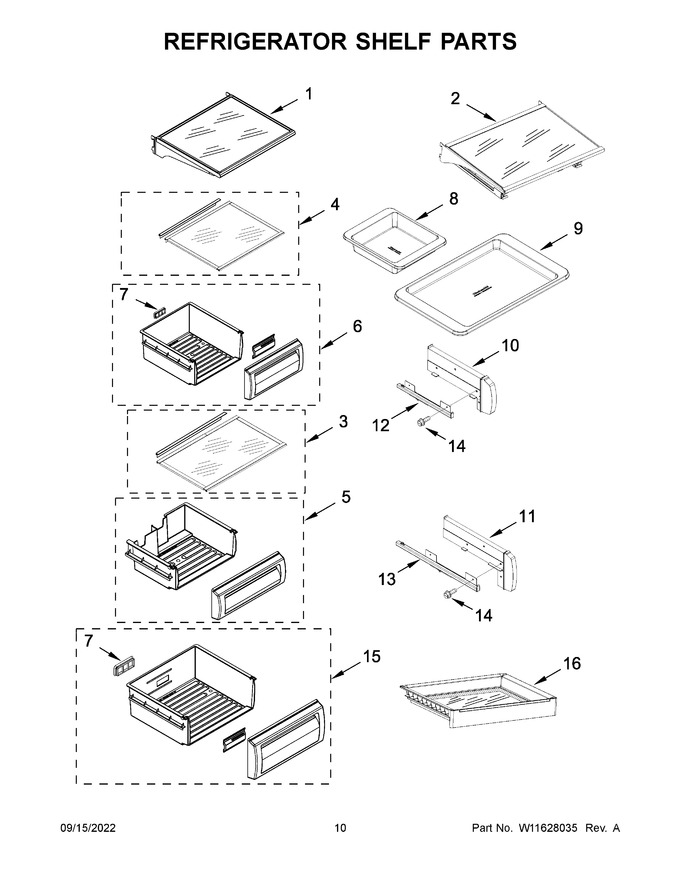

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11626834		Assembly, Shelf   (Replaces: W11410511)				$ 200.66
2	W11631295		Assembly, Bakeware Shelf   (Replaces: W11408073)				$ 305.59
3	W11626829		Assembly, Meat Pan Cover   (Replaces: W11441725)				$ 308.51
4	W11626773		Assembly, Crisper Cover   (Replaces: W11441727)				$ 316.74
5	W11626833		Assembly, Meat Pan   (Replaces: W11448428)				$ 307.34
6	W11448661		Assembly, Crisper Pan		Appelez-nous	-
7	2307810		Duct, Deli Pan		Appelez-nous	-
8	W11633366		Pan, Cake   (Replaces: W11522384)				$ 65.00
9	W11633367		Sheet, Baking   (Replaces: W11522386)				$ 63.46
10	W11410122		Spacer, Crisper (left Hand)		Appelez-nous	-
11	W11410124		Spacer, Meat Pan (left Hand)		Appelez-nous	-
12	2302956		Slide, Crisper (left Hand)				$ 268.86
13	2302954		Slide, Meat Pan (left Hand)				$ 309.14
14	WP8533928		Screw (left Hand)   (Replaces: 8533928)			Immediately	$ 7.43
15	W11626772		Pan, Cool Control Crisper   (Replaces: W11482031)			Immediately	$ 346.95
16	W11631294		Assembly, Platter Shelf   (Replaces: W11611417)				$ 439.76
10A	W11410123		Spacer, Crisper (right Hand)		Appelez-nous	-
11A	W11410125		Spacer, Meat Pan (right Hand)		Appelez-nous	-
12A	2302957		Slide, Crisper (right Hand)				$ 205.50
13A	2302955		Slide, Meat Pan (right Hand)				$ 308.86
14A	W11830745		Screw (right Hand)   (Replaces: 8533929)		Appelez-nous	-
