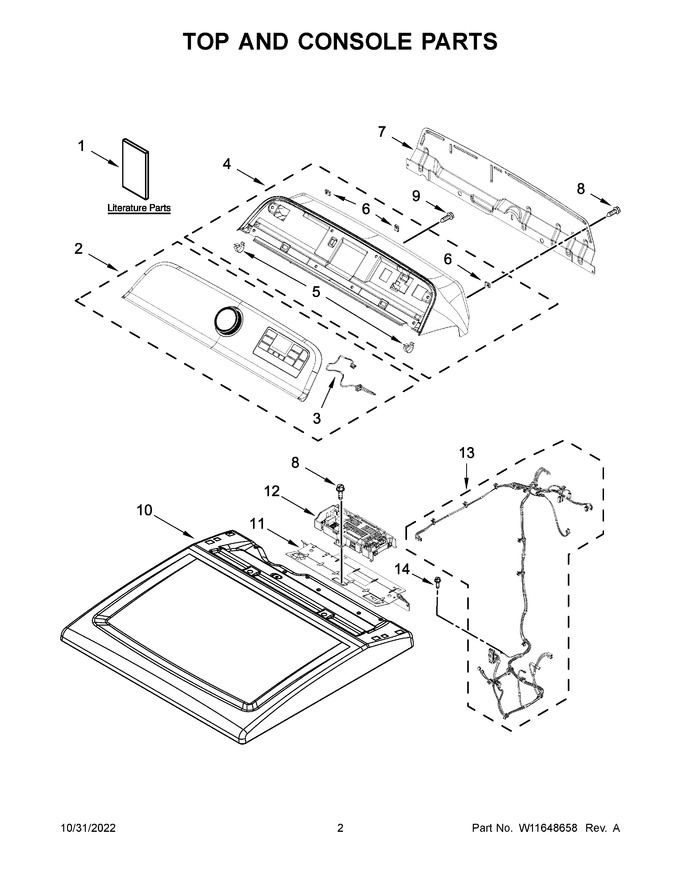

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11555818 | Installation Instructions |
|
- | |||||
| 2 | W11419058 | Assembly, Console Fascia(complete) (Replaces: W11164033) |
|
$ 621.43 | |||||
| 3 | W11164312 | Harness, User Interface (hmi) |
|
$ 167.98 | |||||
| 4 | W11401363 | Console (white) (Replaces: W11178519) |
|
$ 364.05 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 7 | W11433112 | Panel, Rear Console |
|
$ 66.08 | |||||
| 8 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 9 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 10 | W11641121 | Top (white) (Replaces: W11623537) |
|
Immediately | $ 215.10 | ||||
| 11 | W11431865 | Bracket, Electronic Control |
|
$ 57.36 | |||||
| 12 | W11531525 | Appliance Control Unit (acu) (Replaces: W11508024) |
|
$ 341.61 | |||||
| 13 | W11556661 | Harness, Main |
|
- | |||||
| 14 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 10A | W11641122 | Top (chrome Shadow) (Replaces: W11623547) |
|
$ 268.82 | |||||
| 1A | W11175222 | Tech Sheet |
|
- | |||||
| 1B | W11550670 | Quick Start Guide |
|
- | |||||
| 4A | W11401366 | Console (chrome Shadow) (Replaces: W11178520) |
|
Immediately | $ 378.62 |
