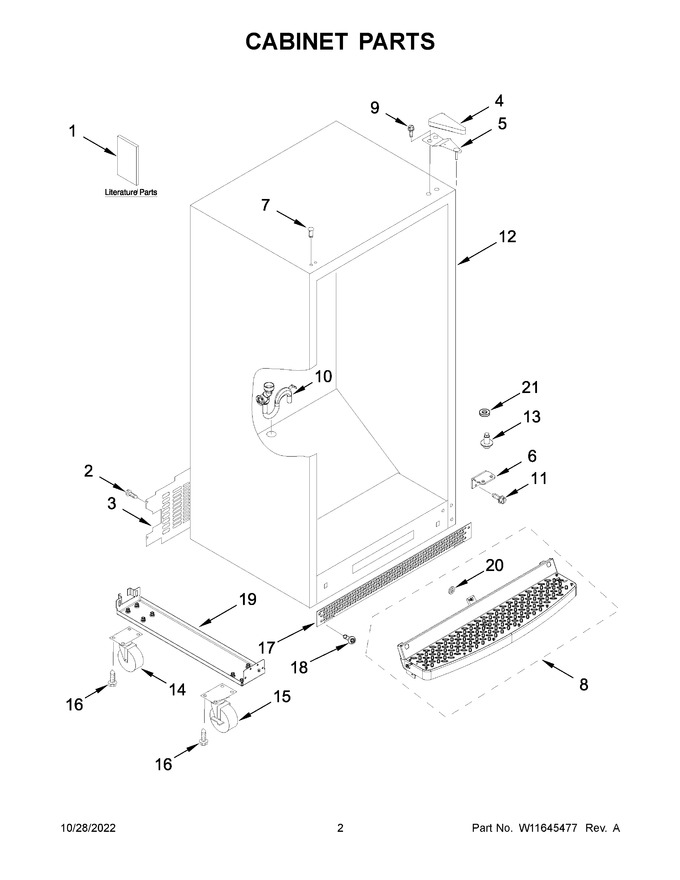

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11527799		Use And Care Guide		Appelez-nous	-
2	380675105		Screw		Appelez-nous	-
3	W11311062		Cover, Unit				$ 117.11
4	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 19.12
5	WP2261963		Assembly, Top Hinge   (Replaces: 2261963)			Immediately	$ 119.42
6	W11102844		Plate, Bottom Hinge (hammer Granite)		Appelez-nous	-
7	WPW10520305		Plug, Hole (black)   (Replaces: W10520305)				$ 19.18
8	W11199807		Assembly, Pedal   (Replaces: W10897311)		Appelez-nous	-
9	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
10	W11673435		Tube, Drain   (Replaces: W11291514)			Immediately	$ 50.98
11	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
12	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
13	W11676609		Pin, Lower Hinge   (Replaces: W10574325)				$ 14.89
14	WP8204601		Caster, Swivel 5   (Replaces: 8204601)				$ 84.91
15	W10741533		Caster, Rigid 5" (with Brake) (left Hand)   (Replaces: 8211251)		Appelez-nous	-
16	WP3400527		Screw   (Replaces: 3400527)				$ 8.07
17	W11199697		Grill, Toe   (Replaces: W10891102)				$ 112.81
18	W11582178		Screw (grey)   (Replaces: W11546560)				$ 14.72
19	W11316673		Bracket, Caster   (Replaces: W11088141)		Appelez-nous	-
20	W11316683		Washer   (Replaces: W11130286)		Appelez-nous	-
21	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 10.74
15A	8211250		Caster, Rigid 5" (with Brake) (right Hand)				$ 44.61
1A	W11357362		Energy Guide		Appelez-nous	-
1B	W11510230		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
