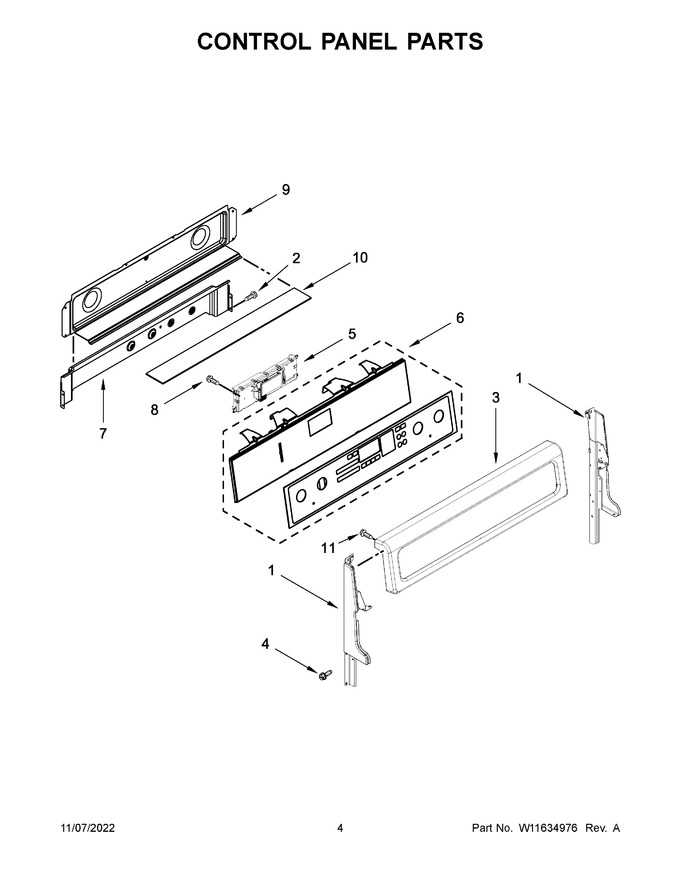

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left))				$ 92.84
2	7101P33860		Screw		Appelez-nous	-
3	WPW10318551		Console (black)   (Replaces: W10318551)				$ 272.41
4	7101P63360		Screw (black)		Appelez-nous	-
5	W11620684		Control, Maxwell   (Replaces: W11541201)				$ 473.47
6	W10879583		Assembly, Membrane (including Bracket) (black)   (Replaces: W10826681)				$ 384.38
7	W10278697		Shield, Vent			Immediately	$ 183.33
8	7101P43460		Screw		Appelez-nous	-
9	W10776098		Cover, Backguard				$ 135.81
10	W11684874		Insulation, Wire Cover   (Replaces: W10309232)				$ 35.56
11	WP74003976		Screw (stainless Models Only)   (Replaces: W10906658)				$ 7.55
1A	W10319111		Support, Backguard (black (right) (for Stainless Model Only)				$ 43.80
1B	W10319110		Support, Backguard (white (left))				$ 95.95
1C	W10319112		Support, Backguard (white (right))				$ 93.79
3A	WPW10318552		Console (white)   (Replaces: W10318552)			Immediately	$ 282.47
3B	WPW10318550		Console (stainless)   (Replaces: W10318550)				$ 273.23
4A	7101P63660		Screw (white)		Appelez-nous	-
6A	W10879584		Assembly, Membrane (including Bracket) (white)   (Replaces: W10826682)				$ 354.05
6B	W10879587		Assembly, Membrane (including Bracket) (stainless)   (Replaces: W10840440)				$ 366.44
