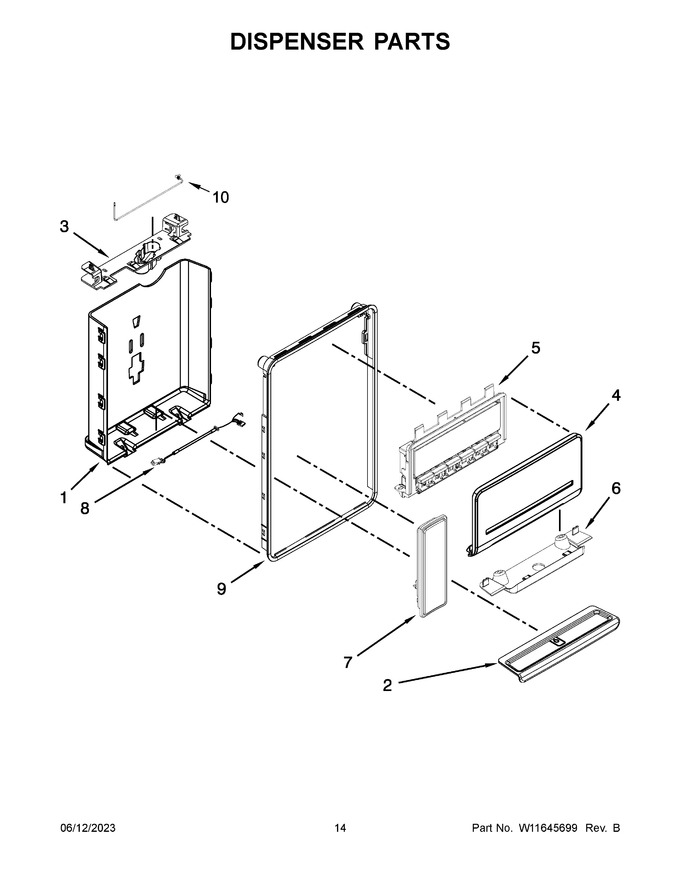

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 2 | WPW10300448 | Drip Tray (white) (Replaces: W10300448) |
|
$ 57.78 | |||||
| 3 | W11616802 | Separator (Replaces: W11586048) |
|
$ 20.73 | |||||
| 4 | W10435575 | Fascia, Sparsh (silver Mirror) |
|
$ 148.08 | |||||
| 5 | W11655738 | Assembly, User Interface (Replaces: W11476585) |
|
Immediately | $ 333.64 | ||||
| 6 | W10356029 | Cover, Separator (chromium Frost) |
|
$ 46.24 | |||||
| 7 | W10433547 | Assembly, Single Pad (white) |
|
$ 292.37 | |||||
| 8 | W10735841 | Assembly, Dispenser Wire |
|
$ 152.20 | |||||
| 9 | W10356017 | Ring, Trim |
|
Immediately | $ 57.31 | ||||
| 10 | W11615170 | Tube, Door (includes Spigot) (Replaces: W11531892) |
|
$ 98.31 | |||||
| 2A | WPW10356018 | Drip Tray (black) (Replaces: W10356018) |
|
$ 57.60 | |||||
| 2B | WPW10356019 | Drip Tray (grey) (Replaces: W10356019) |
|
Immediately | $ 58.09 | ||||
| 4A | W10435576 | Fascia, Sparsh (black) |
|
$ 147.68 | |||||
| 7A | W10433546 | Assembly, Single Pad (black) |
|
$ 285.76 | |||||
| 7B | W11715936 | Assembly, Single Pad (grey) (Replaces: W10433548) |
|
$ 149.25 |
