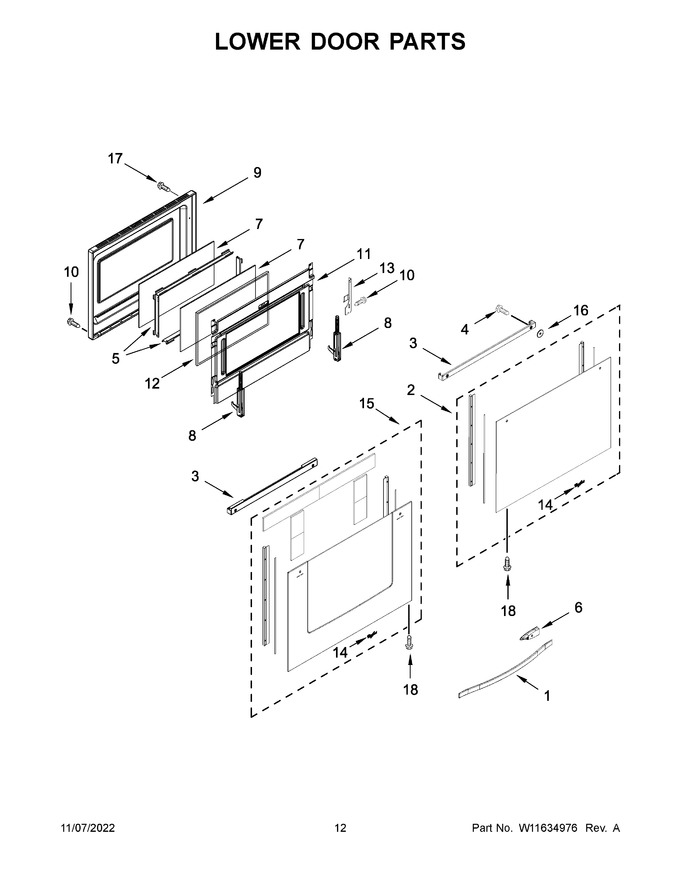

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10618239		Handle, Door (stainless)   (Replaces: W10254687)			Immediately	$ 175.54
2	W11600200		Assembly, Door (black Ice)   (Replaces: W11528029)		Appelez-nous	-
3	WPW10294695		Bracket, Handle   (Replaces: W10294695)				$ 147.02
4	W11396735		Screw   (Replaces: W10426267)				$ 14.75
5	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 197.39
6	WPW10410341		Standoff, Handle (black)   (Replaces: W10410341)				$ 80.75
7	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 141.95
8	WPW10335434		Hinge, Door (left)   (Replaces: W10335434)			Immediately	$ 102.90
9	WPW10272698		Lining, Door   (Replaces: W10272698)				$ 345.72
10	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
11	W10340464		Retainer, Insulation				$ 289.80
12	WPW10321285		Insulation, Door   (Replaces: W10321285)				$ 106.43
13	WPW10272329		Receiver (left)   (Replaces: W10272329)				$ 81.11
14	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
15	W11600199		Assembly, Door (stainless)   (Replaces: W11528034)				$ 823.11
16	7109P08460		Washer, Fiber		Appelez-nous	-
17	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
18	W11690596		Screw With Washer   (Replaces: W10284411)				$ 23.31
13A	WPW10272328		Receiver (right)   (Replaces: W10272328)				$ 90.04
2A	W11600201		Assembly, Door (white Ice)   (Replaces: W11528053)		Appelez-nous	-
3A	W10575689		Bracket, Handle				$ 145.99
6A	WPW10429492		Standoff, Handle (white)   (Replaces: W10429492)			Immediately	$ 23.08
8A	WPW10335433		Hinge, Door (right)   (Replaces: W10335433)				$ 104.99
