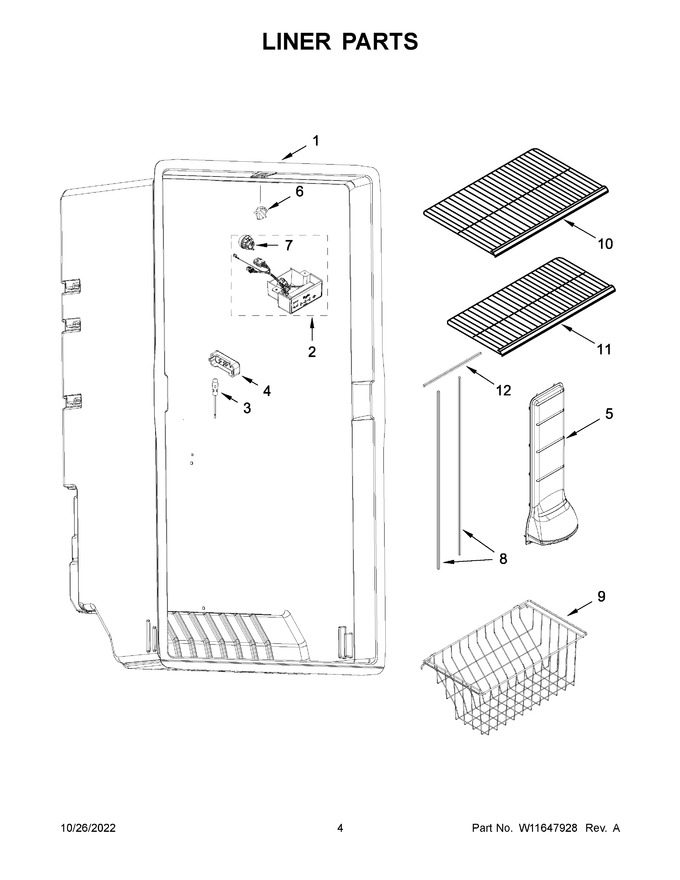

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 2 | W11648650 | Control Assembly (Replaces: W11555877) |
|
- | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 31.23 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 134.24 | ||||
| 6 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 24.73 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
$ 35.70 | |||||
| 8 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 8.75 | |||||
| 9 | W11293207 | Basket, Deep (Replaces: W10581577) |
|
- | |||||
| 10 | W11397871 | Wire Shelf, Deep (Replaces: W10581580) |
|
$ 101.83 | |||||
| 11 | W11578876 | Wire Shelf, Shallow (Replaces: W10581581) |
|
- | |||||
| 12 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 8.75 |
