01 - Cover Sheet

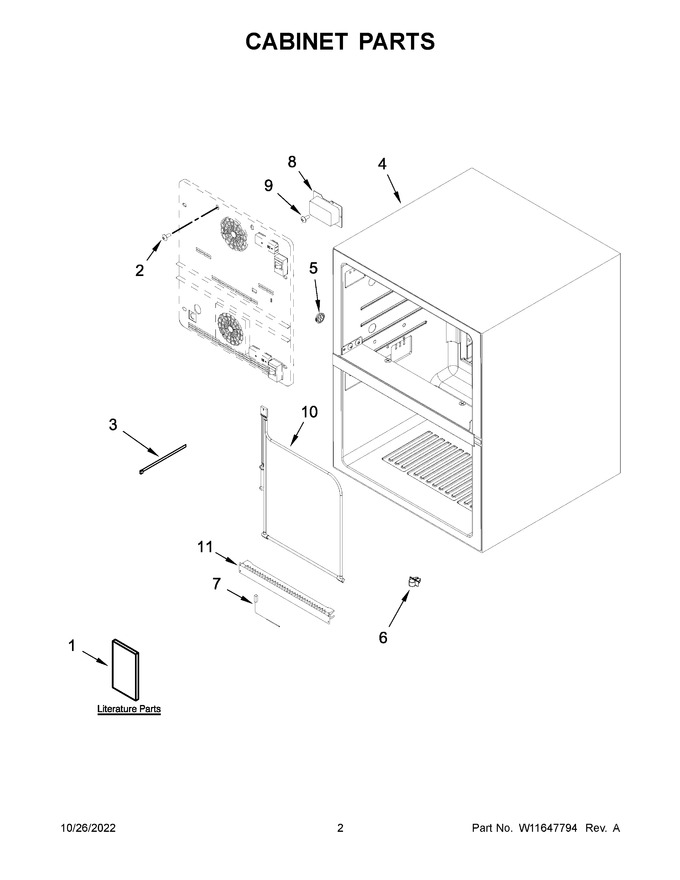

02 - Cabinet Parts
03 - Liner Parts
04 - Upper Drawer Parts
05 - Lower Drawer Parts
06 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10796875 | Energy Guide |
|
- | |||||
| 2 | W10774183 | Screw |
|
- | |||||
| 3 | 4344829 | Tie, Cable |
|
- | |||||
| 4 | NP | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 5 | W10621514 | Liner Bushing |
|
$ 31.71 | |||||
| 6 | W10238022 | Clip, Bushing |
|
- | |||||
| 7 | W11573590 | Defrost Sensor (Replaces: W10772858) |
|
$ 66.17 | |||||
| 8 | W11633898 | Cover |
|
- | |||||
| 9 | 4344826 | Screw |
|
$ 16.70 | |||||
| 10 | W10292475 | Thermal Fuse Assembly |
|
$ 491.84 | |||||
| 11 | 4344747 | Shield, Heat |
|
$ 78.49 | |||||
| 1A | W10796444 | Service & Wiring Sheet |
|
- | |||||
| 1B | W10741575 | Use & Care Guide |
|
- |
