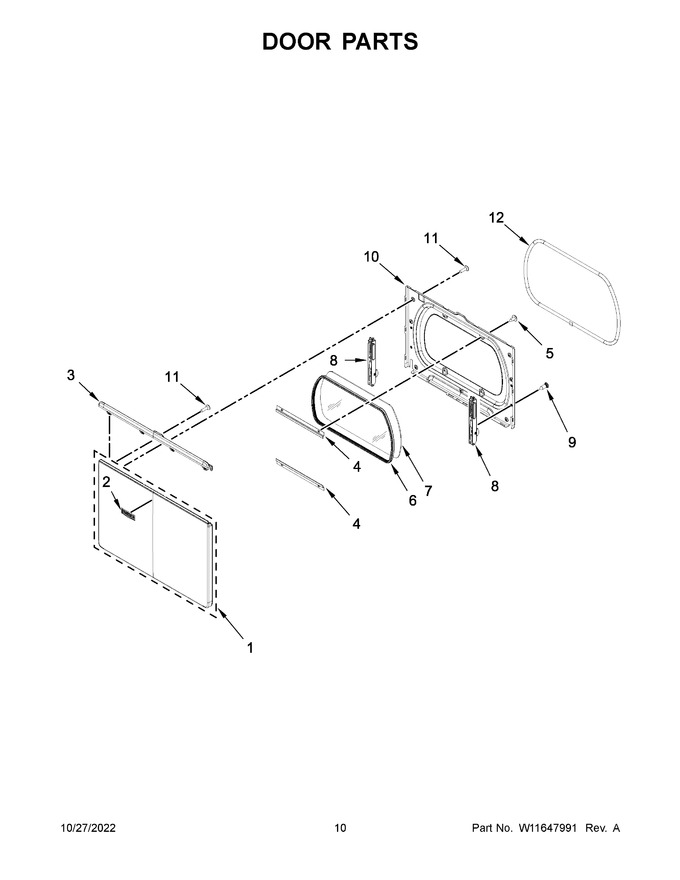

| 1 | W11187709 | Assembly, Outer Door |
|
Immediately | $ 243.72 | ||||
| 2 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 83.10 | ||||
| 3 | W11176946 | Handle, Door |
|
$ 181.29 | |||||
| 4 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 17.15 | ||||
| 5 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.68 | |||||
| 6 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 27.02 | |||||
| 7 | W11434304 | Glass, Door (Replaces: W11244983) |
|
Immediately | $ 98.22 | ||||
| 8 | W11551301 | Assembly, Door Hinge (Replaces: W11116025) |
|
Immediately | $ 71.62 | ||||
| 9 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.57 | |||||
| 10 | W11679613 | Assembly, Inner Door (white) (Replaces: W11122062) |
|
$ 193.15 | |||||
| 11 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.19 | ||||
| 12 | W11596131 | Seal, Door (Replaces: W11243078) |
|
$ 53.47 | |||||
| 10A | W11176947 | Assembly, Inner Door (chrome Shadow) |
|
$ 163.76 |
