SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop, Burner And Grate Parts

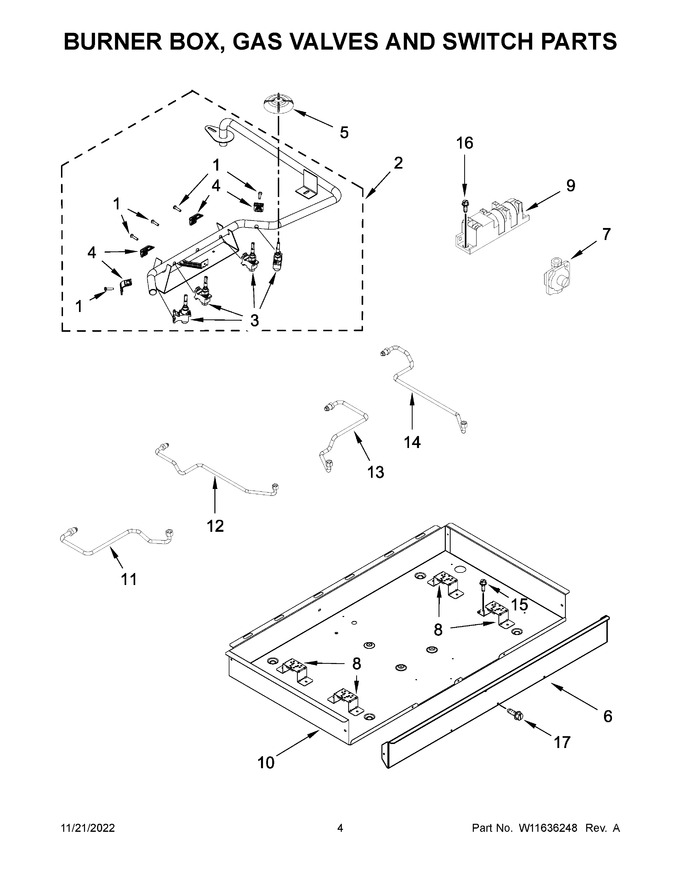

03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8287057 | Screw (Replaces: W10743274) |
|
$ 11.84 | |||||
| 2 | W10594394 | Assembly,manifold |
|
$ 318.78 | |||||
| 3 | W10597157 | Valve, Single (left Front) |
|
$ 263.49 | |||||
| 4 | 8287055 | Bracket, Single Valve |
|
$ 76.46 | |||||
| 5 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 20.30 | |||||
| 6 | W10721889 | Panel, Front (Replaces: W10614950) |
|
- | |||||
| 7 | W11087445 | Regulator, Pressure (Replaces: W10449143) |
|
Immediately | $ 211.40 | ||||
| 8 | W10594429 | Bracket, Orifice Holder |
|
$ 23.33 | |||||
| 9 | W11693498 | Module, Spark (Replaces: W10475148) |
|
Immediately | $ 105.71 | ||||
| 10 | W10735656 | Box, Burner |
|
- | |||||
| 11 | W10566287 | Tubing, Gas Burner (left Front) |
|
- | |||||
| 12 | W10566288 | Tubing, Gas Burner (left Rear) |
|
- | |||||
| 13 | W10566290 | Tubing, Gas Burner (right Front) |
|
- | |||||
| 14 | W10566289 | Tubing, Gas Burner (right Rear) |
|
- | |||||
| 15 | W10443110 | Screw |
|
Immediately | $ 15.25 | ||||
| 16 | 7101P42660 | Screw |
|
- | |||||
| 17 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 3A | W11256503 | Valve, Single (left Rear And Center) (Replaces: W10594391) |
|
Immediately | $ 275.34 | ||||
| 3B | W10859922 | Valve, Single (right Front) (Replaces: W10594393) |
|
$ 80.97 | |||||
| NI | W11042467 | Accessories, Spray, Stainless Steel Cleaning |
|
- |
