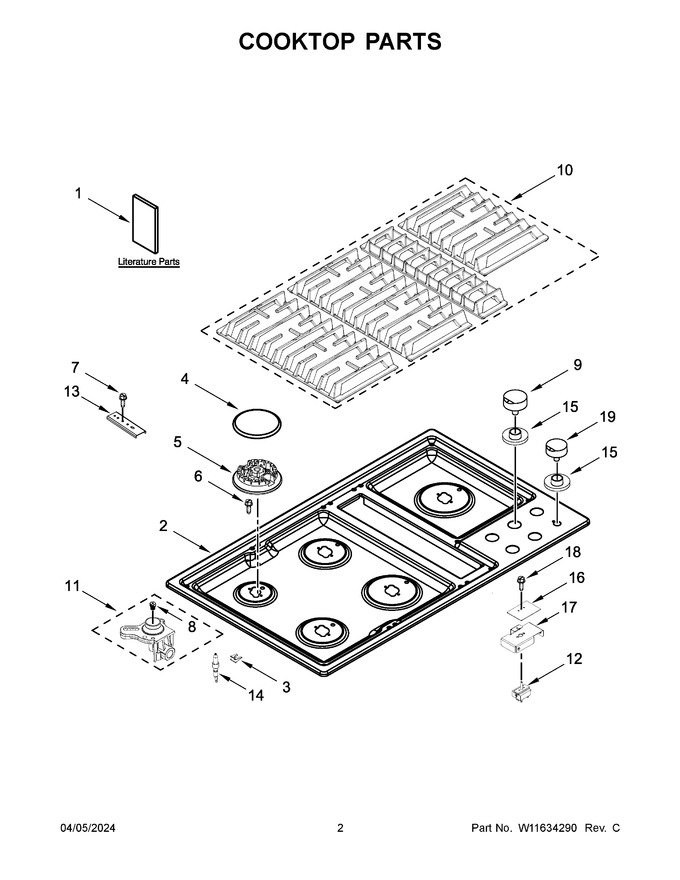

02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11125099		Use And Care Guide		Appelez-nous	-
2	W11476219		Top, Main (black)   (Replaces: W11373824)		Appelez-nous	-
3	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
4	W11379294		Kit, Burner Cap   (Replaces: W10910375)			Immediately	$ 196.00
5	W11084064		Assembly, Burner (sr) (left Front)   (Replaces: W10815355)				$ 130.80
6	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
7	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
8	W10907868		Orifice (left Front)				$ 90.69
9	W11620701		Knob, Control (black)   (Replaces: W11558935)				$ 71.12
10	W11369702		Grate Kit (includes 4 Grates) (black)   (Replaces: W11241662)				$ 459.95
11	W10826754		Holder, Orifice (10k) (left Front)				$ 106.14
12	W11676792		Switch, Blower   (Replaces: W10866564)				$ 66.97
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 92.86
14	W11690659		Electrode (left Front)   (Replaces: W10876259)				$ 73.57
15	W11544657		Bezel (black)   (Replaces: W10559486)				$ 46.01
16	W11508237		Seal, Downdraft Pad		Appelez-nous	-
17	W10814795		Bracket, Switch Mount		Appelez-nous	-
18	7101P30960		Screw		Appelez-nous	-
19	W10559476		Knob, Fan (black)				$ 99.76
11A	W10826751		Holder, Orifice (5k) (left Rear)		Appelez-nous	-
11B	W10826753		Holder, Orifice (15k) (center Front)				$ 106.08
11C	W10827697		Holder, Orifice (12.5k) (center Rear)				$ 102.49
11D	W10826752		Holder, Orifice (17k) (right Rear)				$ 102.50
14A	W10905489		Electrode (left Rear)				$ 69.73
14B	W11688146		Electrode (center Front)   (Replaces: W10876260)				$ 29.89
14C	W10876261		Electrode (center Rear)				$ 69.62
14D	W10876262		Electrode (right Rear)				$ 49.95
15A	WPW10559494		Bezel (stainless)   (Replaces: W10559494)			Immediately	$ 80.22
19A	WPW10559475		Knob, Fan (stainless)   (Replaces: W10559475)				$ 59.55
1A	W11125095		Installation Instructions		Appelez-nous	-
1B	W11565420		Wiring Diagram		Appelez-nous	-
2A	W11476220		Top, Main (stainless)   (Replaces: W11373823)				$ 631.97
5A	W11084066		Assembly, Burner (aux) (left Rear)   (Replaces: W10815354)				$ 130.80
5B	W11084065		Assembly, Burner (ur) (center Front & Right Rear)   (Replaces: W10815357)				$ 130.80
5C	W11084067		Assembly, Burner (r) (center Rear)   (Replaces: W10815356)				$ 130.80
8A	W11677633		Orifice (5k) (left Rear)   (Replaces: W10849719)				$ 99.15
8B	W10907866		Orifice (center Front)				$ 90.69
8C	W10907867		Orifice (center Rear)		Appelez-nous	-
8D	W10907865		Orifice (right Rear)				$ 90.69
9A	W11620702		Knob, Control (stainless)   (Replaces: W11558934)		Appelez-nous	-
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W11465122		Harness, Main		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11190478		Harness, Blower				$ 118.30
NI	7101P46060		Screw, Grounding		Appelez-nous	-
NI	W11083838		Kit, Lp Orifice   (Replaces: W11022463)				$ 166.52
NI	W10831977		Cord, Power				$ 112.58
NI	W10909126		Kit, Plenum Screw			Immediately	$ 22.14
NI	W11465762		Harness, Jumper				$ 33.38
