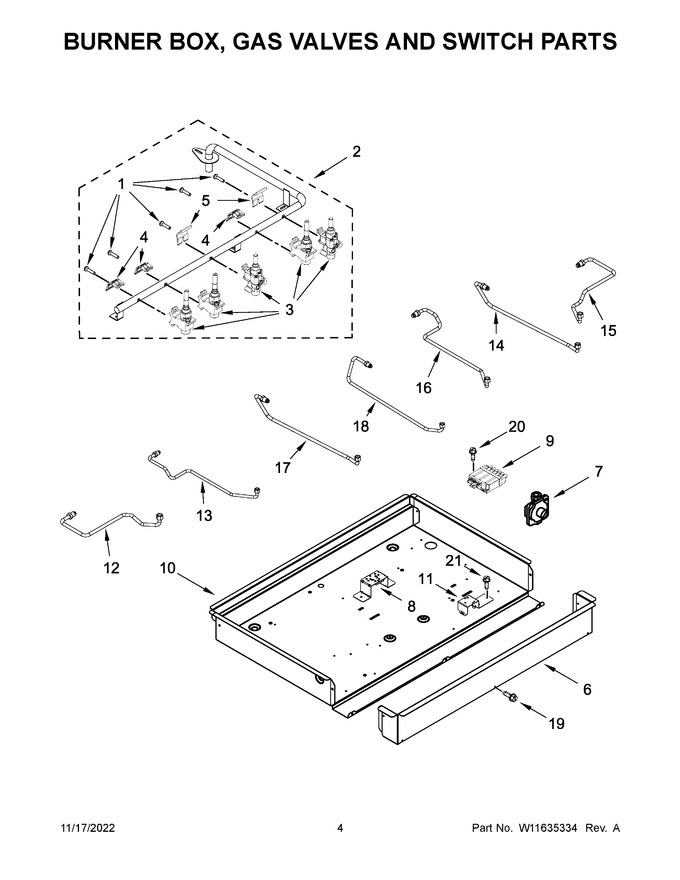

03 - Burner Box, Gas Valves And Switch Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8287057 | Screw (Replaces: W10743274) |
|
$ 11.84 | |||||
| 2 | W10682075 | Assembly, Manifold |
|
$ 448.52 | |||||
| 3 | W11209791 | Valve, Single (left Front) (Replaces: W10717630) |
|
Immediately | $ 275.34 | ||||
| 4 | 8287055 | Bracket, Single Valve |
|
$ 76.46 | |||||
| 5 | 8287056 | Bracket, Dual Valve |
|
- | |||||
| 6 | W10716840 | Panel, Front (Replaces: W10705475) |
|
- | |||||
| 7 | W11087445 | Regulator, Pressure (Replaces: W10449143) |
|
Immediately | $ 211.40 | ||||
| 8 | W10594429 | Bracket, Orifice Holder |
|
$ 23.33 | |||||
| 9 | WPW10475150 | Module, Spark (Replaces: W10475150) |
|
Immediately | $ 318.60 | ||||
| 10 | W10710917 | Box, Burner |
|
- | |||||
| 11 | W10545802 | Bracket, Dual Burner |
|
$ 22.50 | |||||
| 12 | W10545796 | Tubing, Gas Burner (left Front) |
|
$ 82.66 | |||||
| 13 | W10545797 | Tubing, Gas Burner (left Rear) |
|
$ 82.08 | |||||
| 14 | W10545843 | Tubing, Gas Burner (right Front, Main) |
|
$ 84.84 | |||||
| 15 | W10545844 | Tubing, Gas Burner (right Front, Simmer) |
|
$ 85.81 | |||||
| 16 | W10545798 | Tubing, Gas Burner (right Rear) |
|
$ 87.36 | |||||
| 17 | W10545801 | Tubing, Gas Burner (center, Main) |
|
$ 83.19 | |||||
| 18 | W10545800 | Tubing, Gas Burner (center, Simmer) |
|
$ 83.18 | |||||
| 19 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 20 | 7101P626 | Screw |
|
- | |||||
| 21 | W10443110 | Screw |
|
Immediately | $ 15.25 | ||||
| 3A | W10717631 | Valve, Single (left Rear) |
|
$ 263.53 | |||||
| 3B | W11199023 | Valve, Dual (right Front And Center) (Replaces: W10717629) |
|
$ 156.61 | |||||
| 3C | W10717628 | Valve, Single (right Rear) |
|
$ 263.64 | |||||
| NI | W10577591 | Harness, Main |
|
$ 96.95 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 3801F93551 | Bracket, Tie Down |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 7.55 | |||||
| NI | W11804917 | Harness, Switch (Replaces: W10619020) |
|
Immediately | $ 624.23 | ||||
| NI | 7208P02460 | Seal, Manifold Pipe Inlet |
|
- | |||||
| NI | W10853432 | Kit, Lp Conversion (Replaces: W10676662) |
|
$ 86.57 | |||||
| NI | NP | Tub Assembly (not Serviced) |
|
- | |||||
| NI | W10392003 | Cord, Power |
|
$ 161.67 | |||||
| NI | 7101P06260 | Screw (used For Tie Down Bracket) |
|
- |
