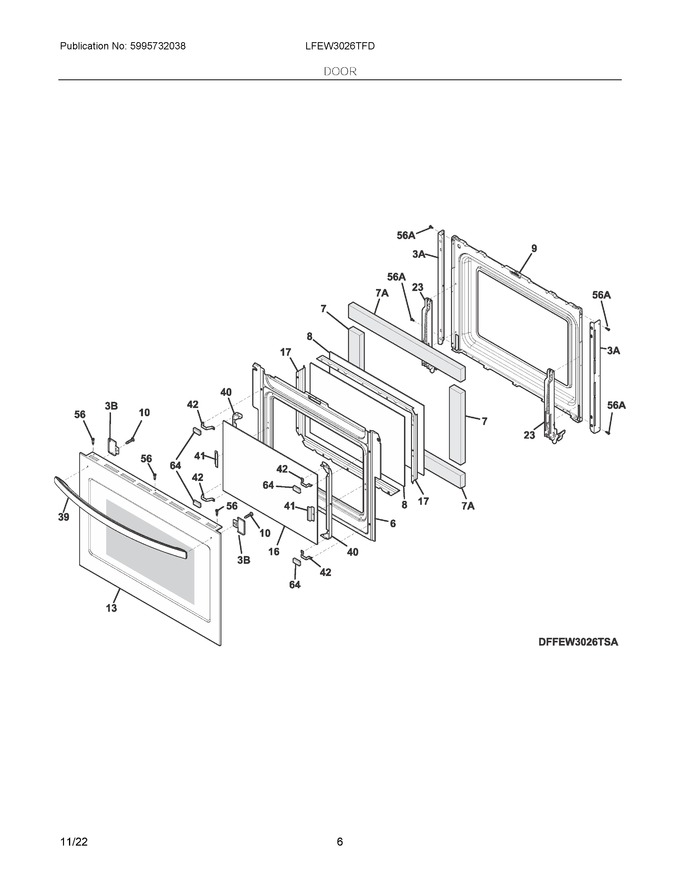

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006905		Baffle, Door				$ 134.82
7	318372017		Insulation, Door				$ 18.11
8	316117507		Glass, Oven Door, Inner		Appelez-nous	-
9	139000411		Liner, Oven Door				$ 169.37
10	5304414648		Screw, Handle Mtg.				$ 15.75
13	5304510984		Door Assembly, Outer, Stainless/black, W/trim		Appelez-nous	-
17	318264731		Spacer, Glass, (2)   (Replaces: 318264712)				$ 80.05
23	316575917		Hinge, Oven Door, Red				$ 74.81
39	140067504096		Handle, Door, Stainless   (Replaces: 5304507752)				$ 53.48
40	318242702		Bracket, Glass Holder, Door, (2)				$ 21.91
41	318370602		Bracket, Glass Panel, (2)				$ 15.17
42	318382302		Bracket, Glass Retainer, (4)				$ 56.46
56	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
64	318165800		Spacer, Glass, Foam				$ 19.69
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 36.24
3B	318262104		Cover, Rear Door, Black, (2)				$ 27.77
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 15.75
7A	318372016		Insulation, Door				$ 19.69
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
