SELECT A DIAGRAM

01 - Cover Sheet

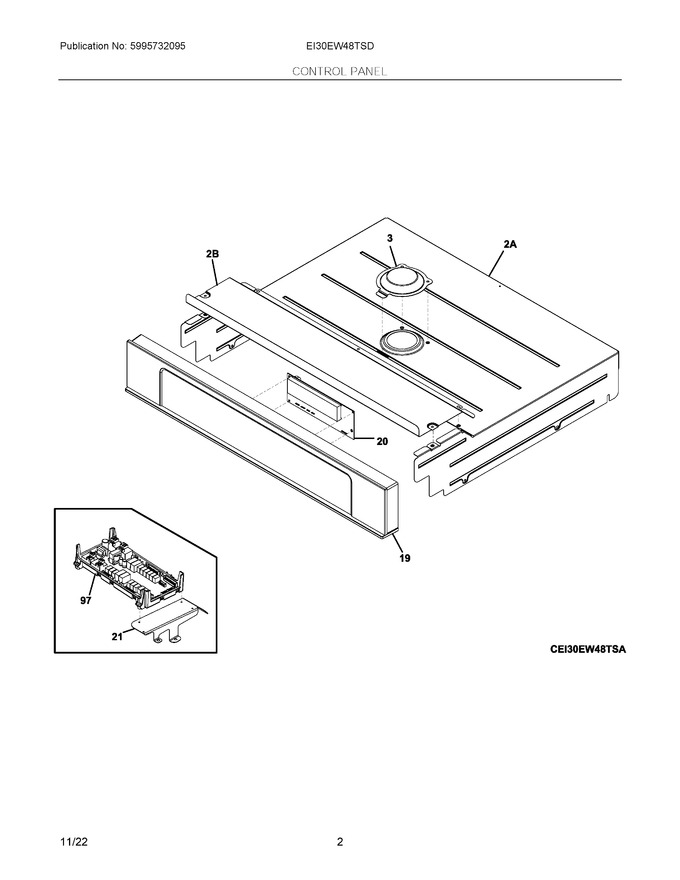

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	808963801		Shield, Sensor, Hall Effect				$ 25.28
19	139037201		Panel, Control Mtg., Black, W/clips				$ 242.06
20	316474951		Controller, Electronic				$ 404.41
21	5304520558		Bracket, Ovc Support				$ 28.65
97	316475806		Board Assembly, Ovc2 Pcba, W/chassis			Immediately	$ 753.57
2A	5304521623		Shield, Wire, Top				$ 107.02
2B	5304520853		Cover, Control Access				$ 64.34
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304514832		Harness, Wiring, Upper Oven, Hall Effect				$ 57.30
NI	5304500624		Harness, Wiring, Lower Oven, Hall Effect				$ 84.26
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5304514831		Harness, Grounding Wire				$ 12.64
NI	5304516246		Harness, Wiring, Communication, Control		Appelez-nous	-
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
NIA	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
