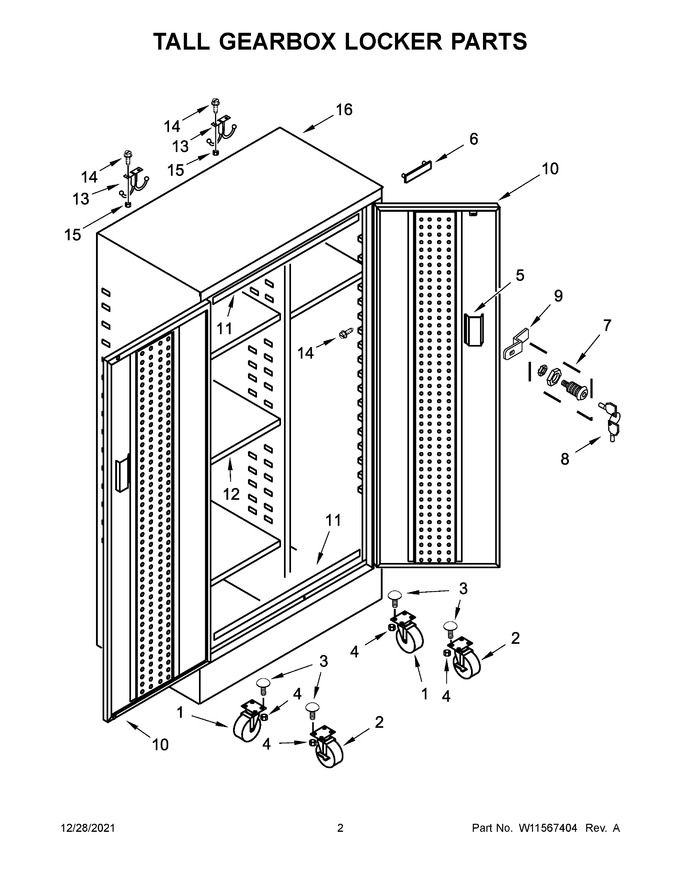

02 - Tall Gearbox Locker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11558421		Caster, Swivel 5   (Replaces: W11538388)		Appelez-nous	-
2	W11558422		Caster, Rigid 5" With Brake (right Hand)   (Replaces: W11538387)		Appelez-nous	-
3	W11558420		Bolt   (Replaces: W11548160)		Appelez-nous	-
4	W11558418		Nut, Nylon   (Replaces: W11548196)		Appelez-nous	-
5	W11549424		Handle, Door   (Replaces: W11533292)		Appelez-nous	-
6	W11679659		Nameplate, Gladiator   (Replaces: W11438530)		Appelez-nous	-
7	W11557659		Lock Assembly   (Replaces: W11522079)				$ 63.98
8	W11557661		Keys   (Replaces: W11547450)		Appelez-nous	-
9	W11538391		Cam				$ 59.92
10	W11538384		Door (includes Handle) (red Treadplate, Right Hand)		Appelez-nous	-
11	W11557662		Magnet   (Replaces: W11522092)		Appelez-nous	-
12	W11538392		Shelf, Half		Appelez-nous	-
13	W11544382		Hook, Double		Appelez-nous	-
14	W11549435		Screw   (Replaces: W11542908)		Appelez-nous	-
15	W11561477		Nut   (Replaces: W11548187)		Appelez-nous	-
16	NP		Roller (not Serviced)		Appelez-nous	-
10A	W11561473		Door (includes Handle) (red Treadplate, Left Hand)   (Replaces: W11538381)		Appelez-nous	-
2A	W11558423		Caster, Rigid 5" With Brake (left Hand)   (Replaces: W11538386)		Appelez-nous	-
