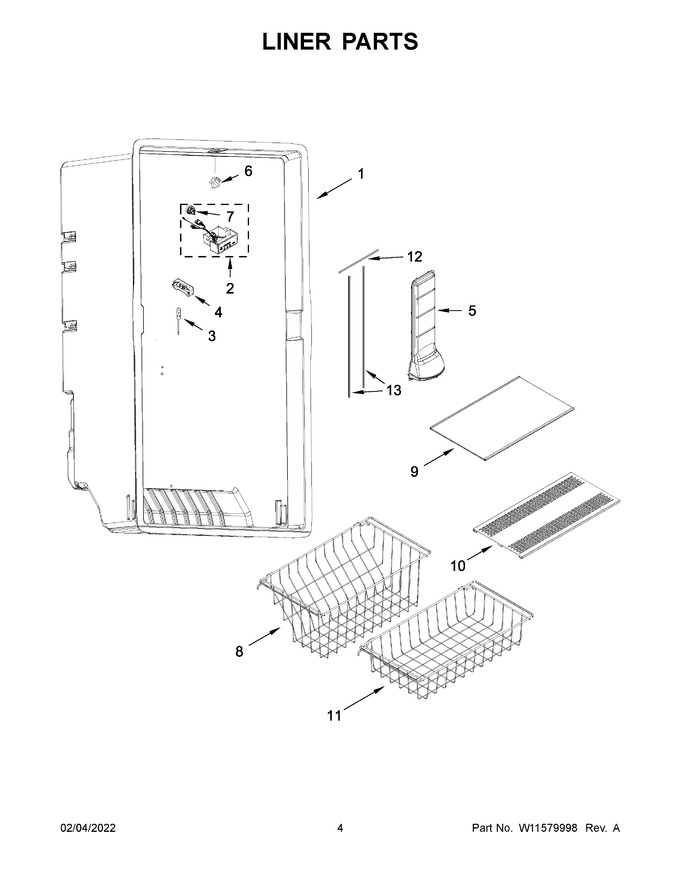

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Roller (not Serviced) |
|
- | |||||
| 2 | W11580521 | Control Assembly (Replaces: W11442551) |
|
- | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 31.23 | |||||
| 5 | W10574583 | Tower, Air |
|
$ 135.09 | |||||
| 6 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 24.73 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
$ 35.70 | |||||
| 8 | W10736043 | Basket, Deep |
|
$ 292.60 | |||||
| 9 | W11244102 | Glass, Shelf Assembly (Replaces: W10918976) |
|
$ 204.21 | |||||
| 10 | W11047286 | Metal, Shelf Assembly |
|
$ 234.73 | |||||
| 11 | W10736055 | Basket, Shallow |
|
$ 269.43 | |||||
| 12 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 8.75 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 8.75 |
