Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13092235SQ Door, Freezer (stainless) Appelez-nous -
2 W11351147 Handle, Door (stainless)   (Replaces: W10157430) Special Order $ 198.22

3 WPW10436247 Gasket, Door (black)   (Replaces: W10164033) In-Stock Immediately $ 355.53

4 WP12992902 Screw, Handle   (Replaces: 12992902) Special Order $ 11.91

5 W10267047 Screw   (Replaces: W10201588) Special Order $ 13.47

6 13067102SP Clip, Handle Special Order $ 27.57

7 67004978 Bushing (4) Special Order $ 22.10

8 W10172585 Endcap, Handle Special Order $ 27.18


    View Diagram in Separate Window     Print Icon   Print Part List

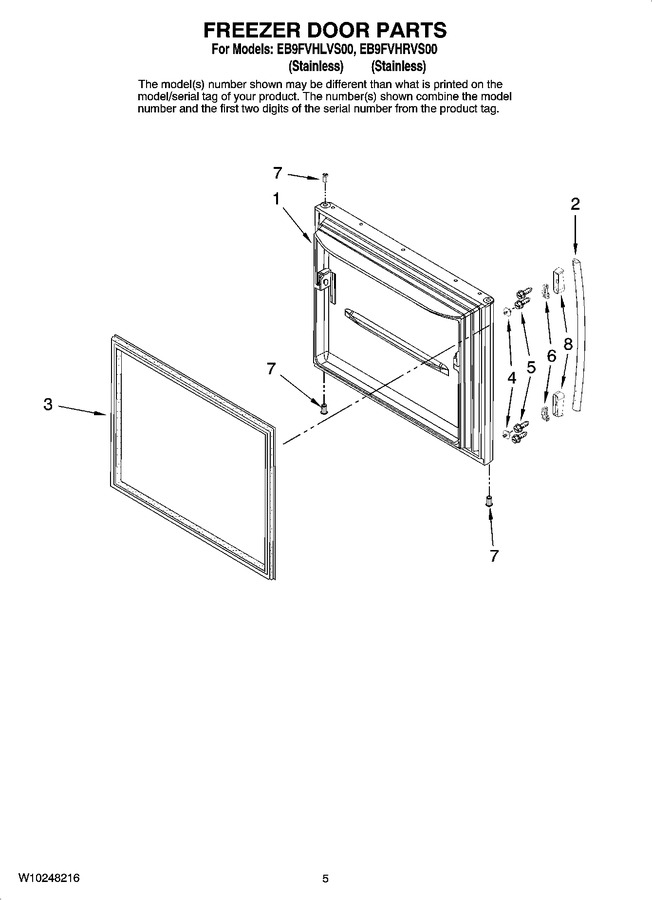

Diagram for EB9FVHLVS00
