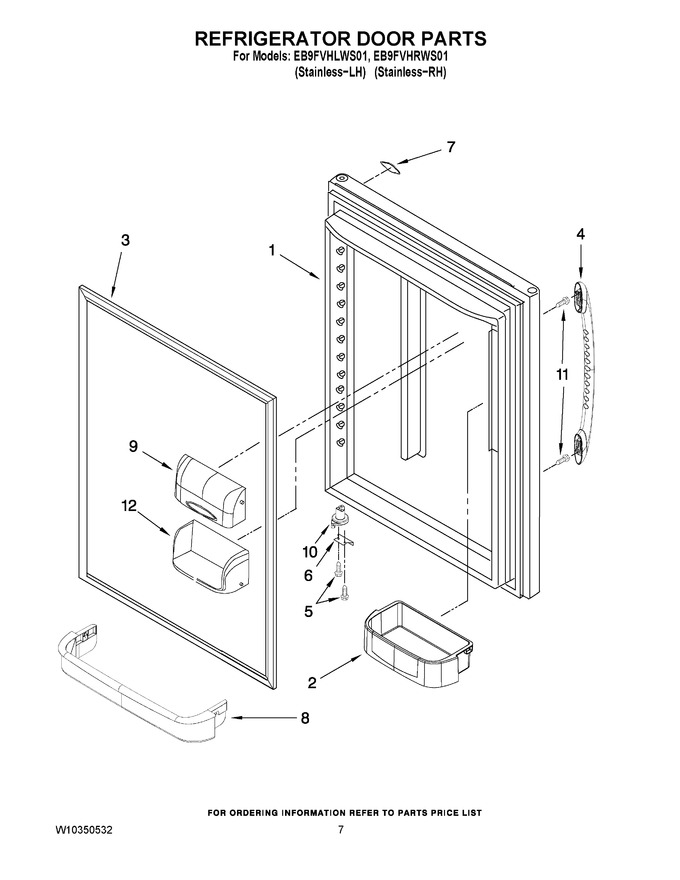

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107540SQ | Door, Refrigerator (stainless Steel-lh) (Replaces: 13107511SQ) |
|
$ 1,037.98 | |||||
| 1 | 13107509SQ | Door, Refrigerator (stainless Steel-rh) |
|
- | |||||
| 2 | WPW10371194 | Bucket, Medium (Replaces: 12849106V) |
|
Immediately | $ 77.23 | ||||
| 2 | WPW10351081 | Bucket, Small (2) (Replaces: 12849103V) |
|
Immediately | $ 73.03 | ||||
| 3 | WPW10436245 | Gasket, Door (black) (Replaces: W10164031) |
|
$ 362.36 | |||||
| 4 | W11351147 | Handle, Door (stainless) (Replaces: W10223019N) |
|
$ 198.22 | |||||
| 5 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 6 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 7 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 8 | 67001139 | Retainer, Ref Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 9 | WP67003637 | Door-dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 10 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 11 | WP12992902 | Screw-flat-(2) (Replaces: 12992902) |
|
$ 11.91 | |||||
| 12 | WP67001279 | Tray-dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 |
