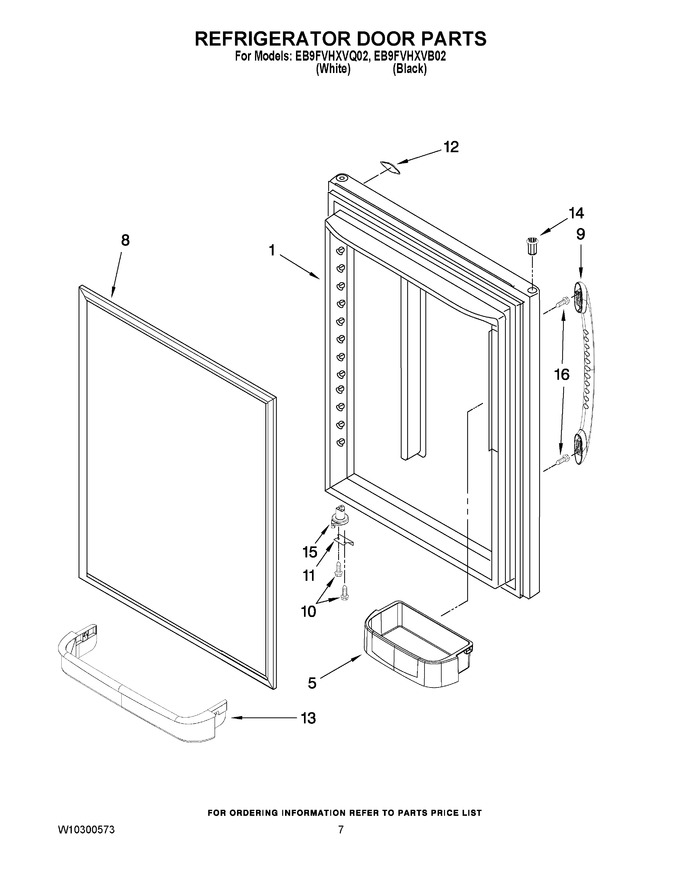

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658573WQ | Door, Refrigerator (white) |
|
$ 775.30 | |||||
| 1 | 12658573BQ | Door, Refrigerator (black) |
|
- | |||||
| 5 | 67001141 | Bucket, Small (2) (Replaces: 12557202) |
|
Immediately | $ 78.91 | ||||
| 5 | 12737802 | Bucket, Tall (1) |
|
- | |||||
| 5 | WP67001021 | Bucket, Medium (2) (Replaces: 12557204V) |
|
$ 84.95 | |||||
| 8 | WPW10443309 | Gasket, Door (white) (Replaces: W10164030) |
|
Immediately | $ 365.24 | ||||
| 8 | WPW10436245 | Gasket, Door (black) (Replaces: W10164031) |
|
$ 362.36 | |||||
| 9 | WPW10222984K | Handle, Door (white) (Replaces: W10222984) |
|
$ 205.46 | |||||
| 9 | W11351146 | Handle, Door (black) (Replaces: W10222985) |
|
$ 189.08 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 12 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 13 | 12690501 | Retainer, Ref Door |
|
$ 41.75 | |||||
| 14 | 67004978 | Bushing (4) (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 14 | WP67004977 | Bushing (4) (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 15 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 16 | WP12992902 | Screw-flat-(2) (Replaces: 12992902) |
|
$ 11.91 |
