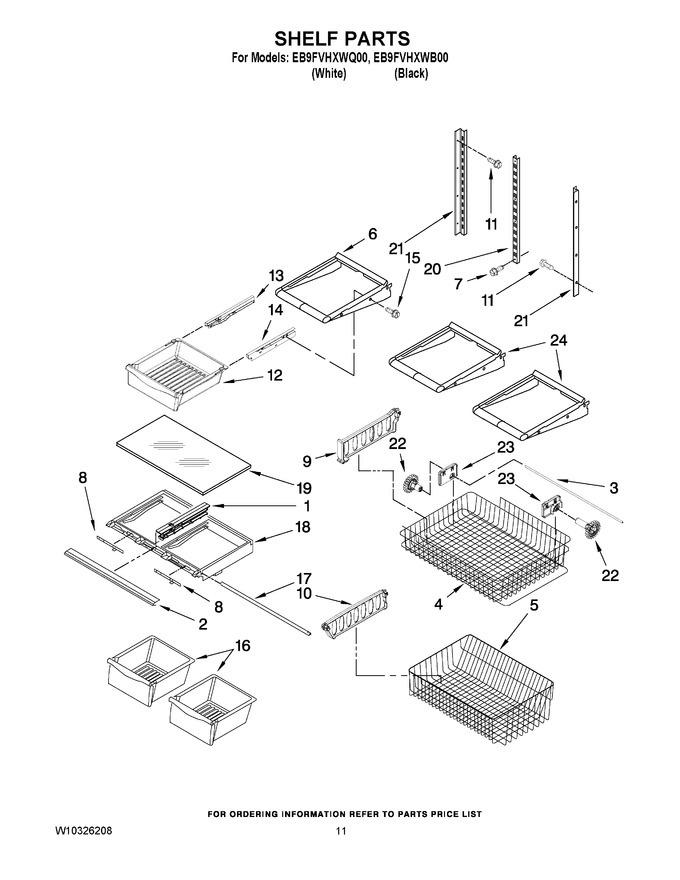

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10671238		Rail, Center Crisper   (Replaces: 12530701N)			Immediately	$ 118.46
2	WPW10231481		Trim, Crisper   (Replaces: W10231481)				$ 117.42
3	12812906WD		Shaft, Rack				$ 42.54
4	W10169953		Basket, Freezer Upper		Appelez-nous	-
5	W10503182		Basket, Freezer (lower)   (Replaces: W10146449)				$ 241.97
6	W11402522		Shelf   (Replaces: 12463608SP)				$ 203.51
7	W10215666		Screw				$ 9.53
8	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
9	W10241046		Divider, Basket (upper)			Immediately	$ 29.19
10	W10205416		Divider, Basket (lower)		Appelez-nous	-
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
12	WP67001308		Pan, Deli   (Replaces: 12656504SP)			Immediately	$ 138.10
13	WP67001054		Glide -left   (Replaces: 12656601SP)			Immediately	$ 8.82
14	WP67001053		Glide-right   (Replaces: 12656602SP)			Immediately	$ 9.24
15	W11233072		Screw, Glide (4)   (Replaces: 12990302SP)			Immediately	$ 14.72
16	W10833528		Pan, Crisper   (Replaces: 12531305)			Immediately	$ 139.95
17	WP12227302WD		Brace, Crisper   (Replaces: 12227302WD)				$ 111.60
18	WPW10671240		Frame, Crisper   (Replaces: 12530901SP)			Immediately	$ 138.10
19	WP67006877		Glass, Crisper Cover   (Replaces: 12204823)			Immediately	$ 209.75
20	W10273463		Ladder, Center				$ 29.61
21	W10251970		Ladder, Side				$ 29.89
22	WPW10474716		Gear (left)   (Replaces: W10158749)			Immediately	$ 32.42
22	WPW10474715		Gear (right)   (Replaces: W10146446)			Immediately	$ 32.76
23	W10348259		Mount, Gear (left)   (Replaces: W10233898)				$ 89.87
23	W10348260		Mount, Gear (right)   (Replaces: W10233899)				$ 89.90
24	W11402522		Shelf, Glide Out   (Replaces: 12463408)				$ 203.51
