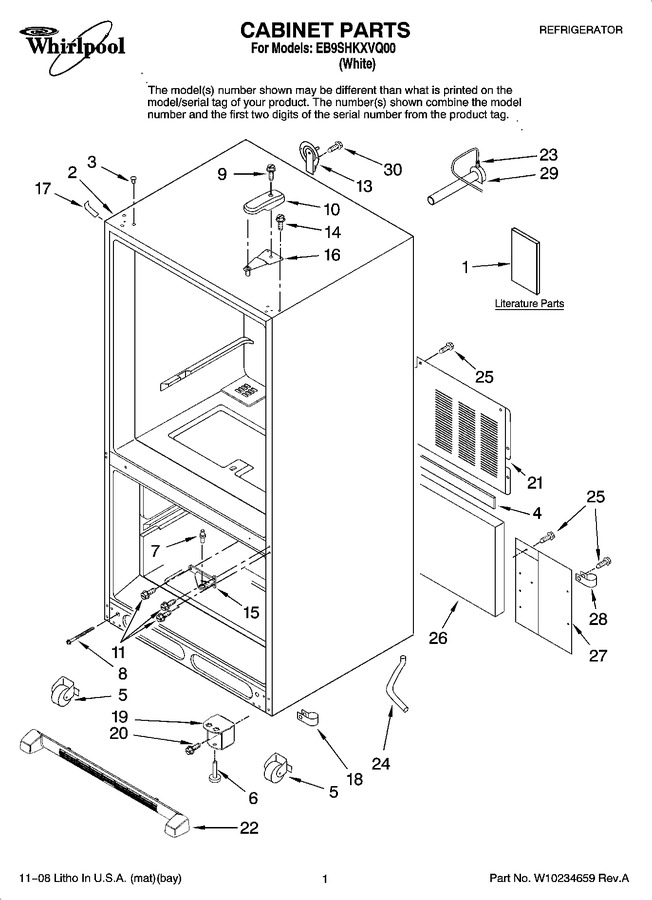

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169671		Tech Sheet		Appelez-nous	-
1	W10200283		Use & Care Guide		Appelez-nous	-
1	W10204875		Energy Guide		Appelez-nous	-
3	WP67001130		Plug, Button (3) (white)   (Replaces: M0310729)			Immediately	$ 5.98
4	B5759649		Gasket		Appelez-nous	-
5	12580304		Roller Assy. (2)				$ 5.84
6	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
7	WP67006744		Pin, Center Hinge   (Replaces: 67006744)				$ 8.68
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 67006611)			Immediately	$ 7.08
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	67001014		Cover, Hinge (white)				$ 22.34
11	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 8.43
13	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 8.43
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 69.79
16	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 47.13
17	67003484		Cover, Corner (white)				$ 21.42
18	W10157973		Clip, Drain				$ 7.80
19	67001918		Bracket, Foot (2)		Appelez-nous	-
20	67006564		Screw (4)			Immediately	$ 8.15
21	67006102		Cover, Unit		Appelez-nous	-
22	67003849		Grille, Toe (white)				$ 51.91
23	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
24	W10164397		Tube, Drain				$ 15.53
25	67006425		Screw			Immediately	$ 7.30
26	67003796		Fiber, Acoustic				$ 19.27
27	67001173		Cover, Water Valve		Appelez-nous	-
28	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
29	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 119.86
30	WP98165		Screw   (Replaces: 67006287)				$ 8.57
