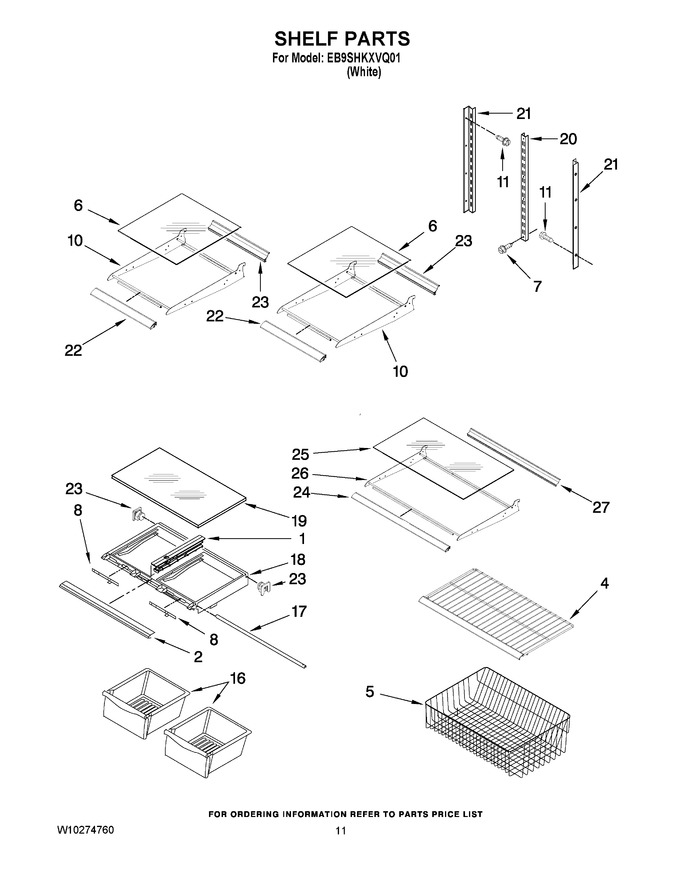

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 118.46
2	WPW10231481		Trim, Crisper   (Replaces: W10231481)				$ 117.42
4	12476801		Shelf, Freezer (upper)				$ 136.27
5	WP12754803		Basket, Freezer (lower)   (Replaces: 12754803)				$ 267.02
6	12204808V		Glass, Shelf		Appelez-nous	-
7	W10709795		Screw   (Replaces: 12990515)				$ 13.79
8	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
10	10460116V		Frame, Shelf		Appelez-nous	-
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
16	W10833528		Pan, Crisper   (Replaces: 12531305)			Immediately	$ 139.95
17	WP12227302WD		Brace, Crisper   (Replaces: 12227302WD)				$ 111.60
18	WPW10671240		Frame, Crisper   (Replaces: 12530901SP)			Immediately	$ 138.10
19	WP67006877		Glass, Crisper Cover   (Replaces: 12204823)			Immediately	$ 209.75
20	67001073		Ladder, Center   (Replaces: 12435807)				$ 56.89
21	W10251970		Ladder, Side				$ 29.89
22	W10231328K		Trim, Front Shelf		Appelez-nous	-
23	10946012V		Trim, Rear Shelf		Appelez-nous	-
24	WP10946013		Trim, Rear Full Shelf   (Replaces: 10946013)				$ 131.84
25	W10840992		Frame, Full Shelf   (Replaces: 10460115)				$ 226.38
26	WP12204809		Glass, Full Shelf   (Replaces: 12204809)				$ 251.22
27	WPW10231329		Trim-front, Full Shelf   (Replaces: W10231329)				$ 119.61
