SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

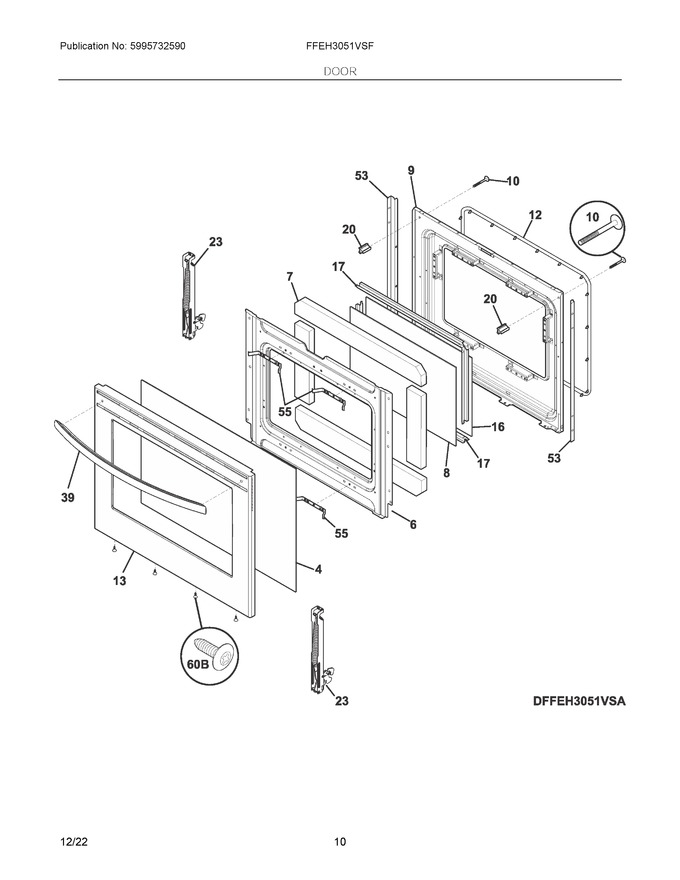

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452762		Glass, Oven Door, Outer, W/foil   (Replaces: 316452774)			Immediately	$ 106.85
6	316402316		Shield, Wool			Immediately	$ 98.58
7	316403900		Insulation, Oven Door			Immediately	$ 80.33
8	5304503232		Glass, Oven Door, Inner				$ 129.94
9	316423807		Liner-oven Door				$ 190.44
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 18.31
12	5304498835		Seal, Oven Door			Immediately	$ 98.60
13	316604001		Panel, Oven Door, Stainless				$ 184.70
16	5304503232		Glass, Oven Door, Inner, Hrc1   (Replaces: 316117503)				$ 129.94
17	5304504811		Spacer, Glass			Immediately	$ 27.80
20	316284102		Spacer, Door Handle, (2)			Immediately	$ 19.38
23	316575917		Hinge, Oven Door, Red				$ 74.81
39	140067504096		Handle, Door, Stainless, 39   (Replaces: 5304531692)				$ 53.48
53	5304532043		Shield-filler Door Ss, 53				$ 41.57
55	316408301		Bracket, Glass Support, (4)				$ 6.74
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316483102		Label, Anti-tip				$ 3.95
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
