SELECT A DIAGRAM

01 - Cover Sheet

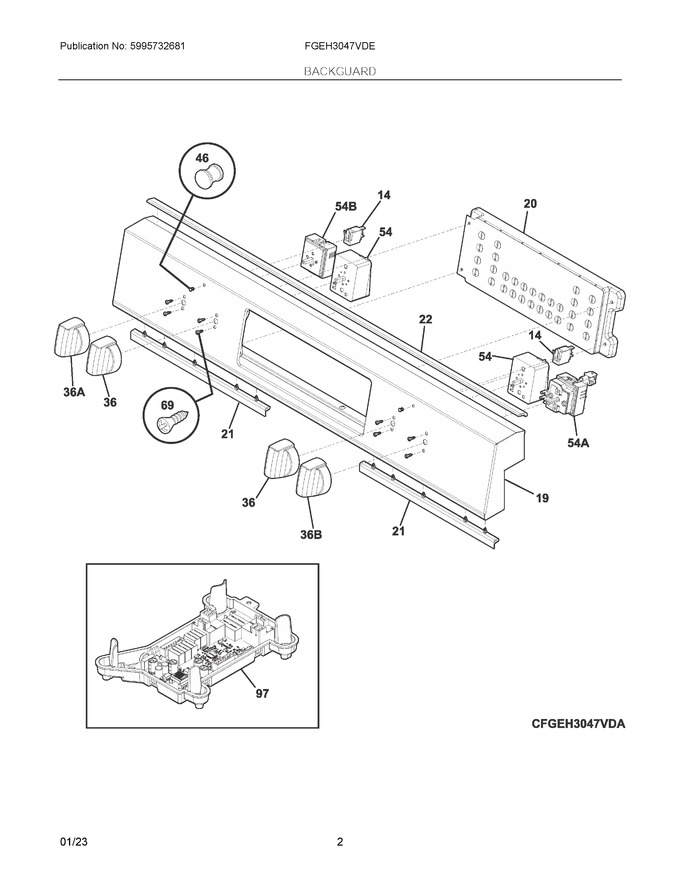

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 59.52
19	5304518015		Control Panel, Front, Black Stainless		Appelez-nous	-
20	5304526193		Control, Electronic, Black, Es501e			Immediately	$ 349.73
21	5304521020		Seal, Control Panel			Immediately	$ 80.53
22	5304521042		Bumper Guard, Assembly, Magnetic				$ 273.01
36	5304521005		Knob, Infinite Switch, Black Stainless, Single		Appelez-nous	-
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
97	5304516862		Board, Pc, Oven Relay			Immediately	$ 367.41
36A	5304521006		Knob, Infinite Switch, Black Stainless, Dual		Appelez-nous	-
36B	5304521008		Knob, Infinite Switch, Black Stainless, Triple		Appelez-nous	-
54A	807004702		Switch, Triple, Infinite			Immediately	$ 139.65
54B	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 37.01
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5304520393		Spacer, Foam Block, 2" X 1", W/adhesive		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5304522933		Harness, Wiring, Backsplash			Immediately	$ 211.50
NIA	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
NIA	5304521041		Insulator, Controller, W/adhesv Tape				$ 16.01

    View Diagram in Separate Window       Print Part List
