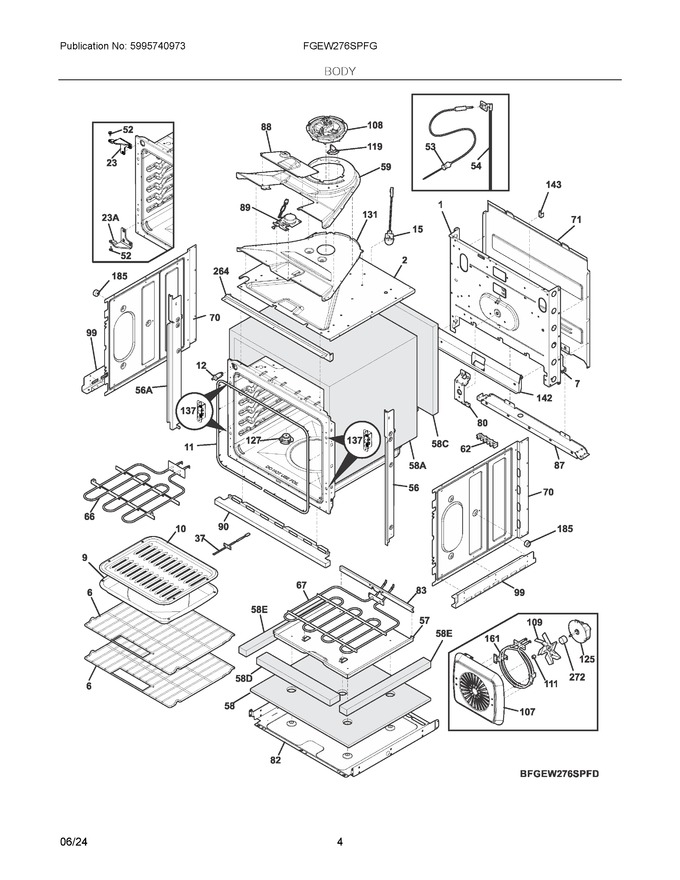

03 - Body
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506958 | Panel, Main Back |
|
- | |||||
| 2 | 139027809 | Shield, Insulation, Top |
|
- | |||||
| 6 | 5304514984 | Rack, Oven, W/handle |
|
Immediately | $ 85.77 | ||||
| 7 | 5304506960 | Panel, Service, Main Back |
|
- | |||||
| 9 | 316081900 | Pan, Broiler |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert, Broiler Pan |
|
$ 68.85 | |||||
| 11 | 807545501 | Seal, Oven Door, Gray |
|
Immediately | $ 90.43 | ||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 48.93 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen |
|
Immediately | $ 22.84 | ||||
| 23 | 808893101 | Hinge, Front Frame, Top |
|
Immediately | $ 34.65 | ||||
| 37 | 5304504897 | Sensor, Oven Temp Probe |
|
Immediately | $ 53.48 | ||||
| 52 | 318074913 | Pin, Hinge, Black |
|
Immediately | $ 51.19 | ||||
| 53 | 5304504202 | Probe, Meat Temp, Red |
|
Immediately | $ 117.99 | ||||
| 54 | 139017203 | Receptacle Assy, Meat Probe |
|
Immediately | $ 170.10 | ||||
| 56 | 318903759 | Trim, Side, Black, Rh |
|
$ 82.69 | |||||
| 57 | 5304538692 | Box, Bake Element (Replaces: 5304506949) |
|
- | |||||
| 58 | 5304506952 | Insulation, Bake Element, Lower |
|
$ 85.84 | |||||
| 59 | 139027600 | Duct, Cooling Fan, Upper |
|
$ 95.29 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 29.66 | ||||
| 66 | 140123969028 | Element, Broil, 6 Pass, 4000w (Replaces: 5304514924) |
|
- | |||||
| 67 | 140010667149 | Element, Hidden Bake, 2500w (Replaces: 5304506946) |
|
$ 61.37 | |||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) |
|
$ 80.05 | |||||
| 71 | 139022001 | Shield, Rear Wire, Main Back |
|
- | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 16.54 | |||||
| 82 | 5304506947 | Shield, Insulation, Lower |
|
- | |||||
| 83 | 5304506951 | Shield, Bake Element, Rear |
|
- | |||||
| 87 | 139021901 | Bracket, Cable Mtg. |
|
- | |||||
| 88 | 5304506964 | Cover, Latch Motor |
|
$ 26.78 | |||||
| 89 | 5304533539 | Motor, Latch Assembly (Replaces: 139078302) |
|
$ 43.05 | |||||
| 90 | 318259864 | Trim, Base, Stainless |
|
$ 203.07 | |||||
| 91 | 5304500329 | Bracket, Side Cavity, Short, (2) |
|
- | |||||
| 99 | 318256201 | Bracket, Side, Bottom, (2) |
|
$ 63.00 | |||||
| 107 | 139013903 | Cover, Convection Fan |
|
$ 52.07 | |||||
| 108 | 318575612 | Motor Assembly, Cooling Fan |
|
Immediately | $ 218.45 | ||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 32.34 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 21.26 | ||||
| 119 | 318578506 | Thermostat, Safety, 105c |
|
Immediately | $ 64.66 | ||||
| 125 | 139008500 | Motor, Convection Fan |
|
Immediately | $ 240.25 | ||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 11.14 | ||||
| 131 | 139027700 | Duct, Cooling Fan, Lower |
|
$ 81.11 | |||||
| 137 | 318090310 | Latch, Door |
|
Immediately | $ 49.57 | ||||
| 142 | 5304506953 | Sheild, Air Deflector, Back |
|
- | |||||
| 143 | 318172904 | Bracket, Wire Support |
|
- | |||||
| 161 | 8581390065036 | Element, Convection, 2500w (Replaces: 139006500) |
|
$ 52.92 | |||||
| 185 | 318531800 | Spacer, Oven Shield, (2) |
|
$ 14.18 | |||||
| 264 | 808877504 | Trim, Vent, Black |
|
Immediately | $ 129.94 | ||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 19.69 | |||||
| 23A | 808893102 | Hinge, Front Frame, Bottom |
|
Immediately | $ 32.29 | ||||
| 56A | 318903760 | Trim, Side, Black, Lh |
|
$ 78.75 | |||||
| 58A | 139001701 | Insulation, Oven Wrapper, 27", Top & Sides |
|
- | |||||
| 58C | 5304506954 | Insulation, Oven, Back |
|
- | |||||
| 58D | 5304506965 | Insulation, Bake Element, Front |
|
- | |||||
| 58E | 5304506966 | Insulation, Bake Element, Side |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 5304531844 | Harness-conduit Mc Peregrine, * # |
|
$ 135.72 | |||||
| NI | 5304525749 | Harness, Wiring, Main |
|
Immediately | $ 168.53 | ||||
| NI | 5304517285 | Harness Assembly, Filter, Electrical, W/capacitors |
|
$ 42.98 | |||||
| NI | 5303321211 | Washer, Black, (2) |
|
- | |||||
| NI | 5304470882 | Screw, Anti-tip, 8 - 5/8, Black, (2) |
|
$ 14.96 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NI | 318165800 | Spacer, Glass, Foam |
|
$ 19.69 | |||||
| NIA | 5304525750 | Harness, Wiring, Mdl Ads |
|
$ 90.56 | |||||
| NIA | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 10.24 | |||||
| NIA | 316001017 | Screw, Grounding, 10-24 X 1.835, Green |
|
$ 3.37 | |||||
| NIA | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 12.60 | |||||
| NIA | 5304497581 | Screw, Latch, #8-32 X 3/16, (4) |
|
- | |||||
| NIB | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 6.30 | |||||
| NIB | 5304504203 | Washer, Door Lock, Black |
|
- |
