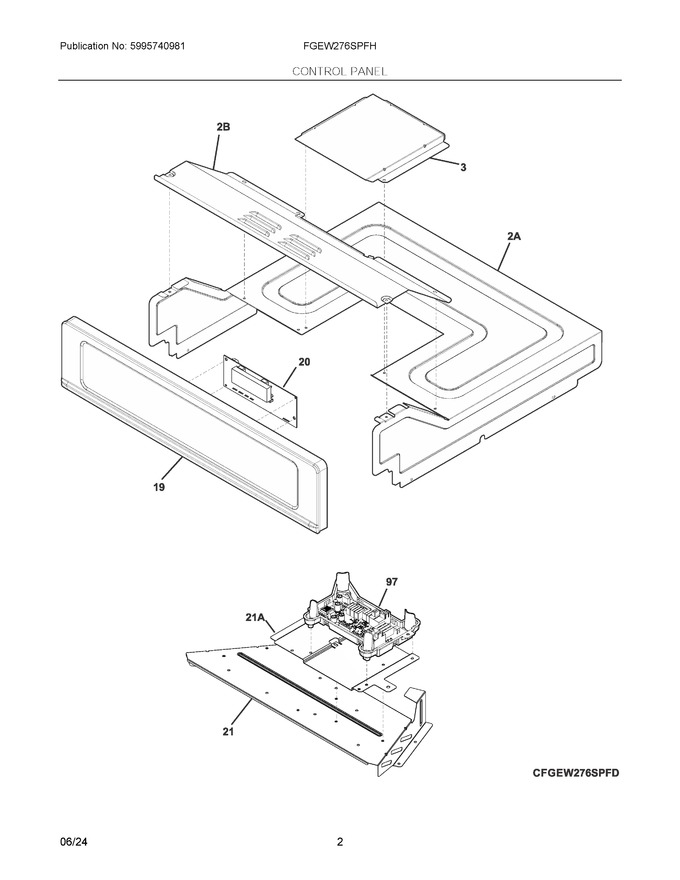

02 - Control Panel
03 - Body
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577801 | Box, Fan Service |
|
- | |||||
| 19 | 139038877 | Control Panel Assembly, Steel/glass, Stainless/black, W/touch Pad |
|
$ 304.80 | |||||
| 20 | 316474958 | Controller, Electronic, Mars |
|
Immediately | $ 385.17 | ||||
| 21 | 139028002 | Bracket, Mounting (Replaces: 139028001) |
|
$ 42.63 | |||||
| 97 | 5304516862 | Board, Pc, Oven Relay |
|
Immediately | $ 367.41 | ||||
| 21A | 809191301 | Bracket, Ovc Board Mtg. |
|
- | |||||
| 2A | 139003603 | Cover, Oven Top |
|
$ 77.77 | |||||
| 2B | 139003702 | Cover, Control Access |
|
$ 31.08 | |||||
| NI | 316021137 | Screw, Low Profile, 8-18 X 3/8, Black, (2) |
|
$ 3.15 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NIA | 5303323129 | Screw, 8 X 0.750 |
|
- |
