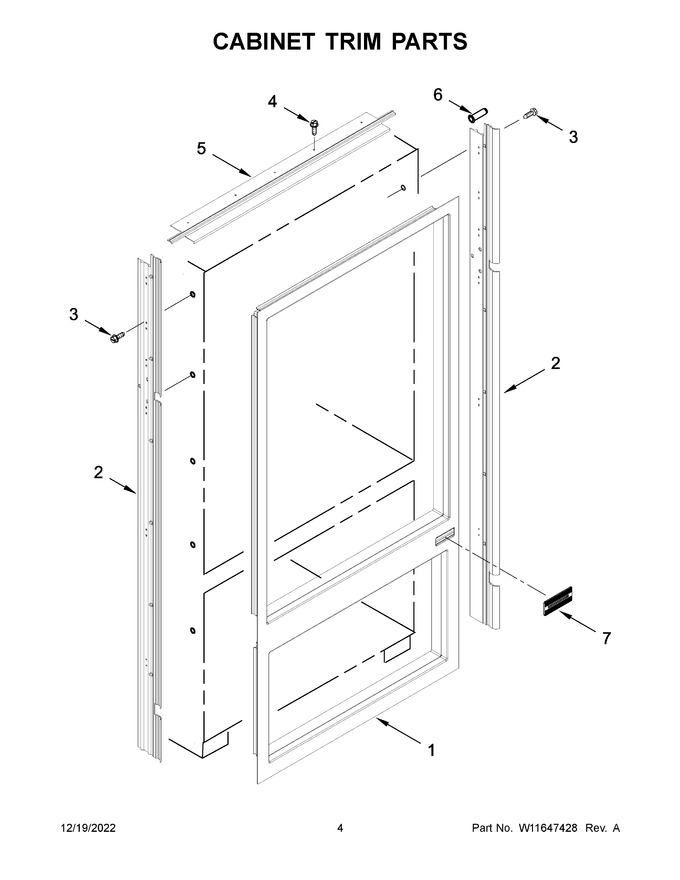

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Following Parts Not Illustrated |
|
- | |||||
| 2 | W11173662 | Assembly, Trim (includes Blind Threaded Insert) (left Side) (Replaces: W11085744) |
|
Immediately | $ 264.96 | ||||
| 3 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 4 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 5 | 2314019 | Trim, Cabinet (top) Right Hand (aluminum) |
|
Immediately | $ 119.54 | ||||
| 6 | WPW10121451 | Insert, Blind Threaded (Replaces: W10121451) |
|
Immediately | $ 8.03 | ||||
| 7 | W10708610 | Cover, Hinge |
|
$ 117.80 | |||||
| 2A | W11173663 | Assembly, Trim (includes Blind Threaded Insert) (right Side) (Replaces: W11085745) |
|
$ 265.20 |
