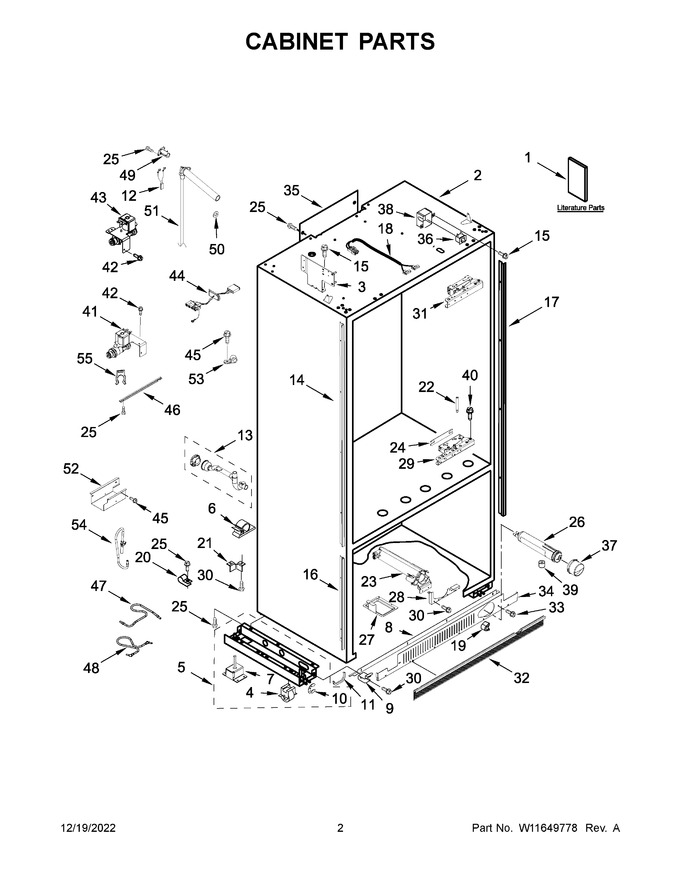

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner & Icemaker Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Top Grille And Unit Cover Parts


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11511882		Use And Care Guide		Appelez-nous	-
2	NP		Following Parts Not Illustrated		Appelez-nous	-
3	W11042558		Bracket, Grille (includes Rivet Nut) Left Hand (grey)				$ 95.20
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
5	W10860229		Support, Leveler Assembly (left Hand)   (Replaces: W10279275)				$ 381.83
6	W10663352		Clip				$ 21.91
7	2005032		Leveler, Adjustable			Immediately	$ 200.07
8	W10634858		Trim, Top Grille (grey)				$ 250.77
9	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 43.26
10	2006841		Ring, Retainer				$ 92.66
11	2307584		Grommet, Crossover Tube				$ 23.40
12	W10482373		Assembly, Fill Tube Heater Wire				$ 125.10
13	W11291510		Assembly, Drain Tube				$ 76.97
14	W10687582		Trim, Side (right Hand Grey)				$ 242.42
15	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
16	W10687583		Trim, Side Right Hand (grey)				$ 161.69
17	W10611999		Trim, Side (grey)			Immediately	$ 250.20
18	W10740131		Assembly, Top Switch Jumper Wire				$ 128.84
19	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
20	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
21	2006617		Bracket, Base Support (rear)		Appelez-nous	-
22	W10234202		Pin, Door Stop				$ 91.73
23	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 270.85
24	W10291661		Spacer, Hinge				$ 16.87
25	W11624204		Screw   (Replaces: 486194)				$ 14.72
26	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
27	2318189		Tray, Filter Drip				$ 148.73
28	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 80.33
29	W10691148		Hinge, Bottom (grey)				$ 358.82
30	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
31	W11700299		Hinge, Top Right Hand (grey)   (Replaces: W10691136)			Immediately	$ 507.95
32	WPW10188547		Skirt, Grille (black)   (Replaces: W10188547)			Immediately	$ 165.28
33	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 8.38
34	W11739145		Grille, Bottom   (Replaces: W10189196)			Immediately	$ 209.08
35	2215612		Cover, Air Duct		Appelez-nous	-
36	W11624786		Switch, Light   (Replaces: W11593919)			Immediately	$ 43.11
37	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 50.68
38	W11624203		Cover, Switch (left & Right Hand)   (Replaces: W11577783)		Appelez-nous	-
39	2005433		Spacer				$ 23.33
40	W11721628		Screw   (Replaces: W11370632)			Immediately	$ 14.78
41	W11225845		Valve, Solenoid   (Replaces: W10574769)			Immediately	$ 198.88
42	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
43	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 198.88
44	W11479397		Assembly, Water Valve Wire				$ 78.74
45	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
46	2320559		Support, Valve				$ 88.79
47	W10619899		Tube, Filter Inlet				$ 46.24
48	W10635851		Tube, Filter Outlet				$ 88.57
49	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 206.58
50	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
51	2317847		Assembly, Water Inlet Tube				$ 86.35
52	W10619291		Shield, Valve Electrical		Appelez-nous	-
53	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
54	W11690636		Line, Water   (Replaces: W10577944)				$ 130.54
55	W10782423		Locking Ring (1/4")				$ 24.37
1A	W11112724		Energy Guide		Appelez-nous	-
1B	W11511880		Installation Instructions		Appelez-nous	-
1C	W11511885		Tech Sheet		Appelez-nous	-
1D	W11511887		Wiring Diagram		Appelez-nous	-
3A	W11042559		Bracket, Grille (includes Rivet Nut), Right Hand (grey)				$ 97.28
55A	W10782424		Locking Ring (5/16)		Appelez-nous	-
5A	W10860448		Support, Leveler Assembly (right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
NI	W10234156		Installation Block				$ 16.77
NI	W10744761		Template, Grill (wood Panel)				$ 81.92
NI	W10488115		Template, Door (wood Panel)			Immediately	$ 114.66
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11175806		Kit, Installation   (Replaces: W10613135)				$ 279.62
