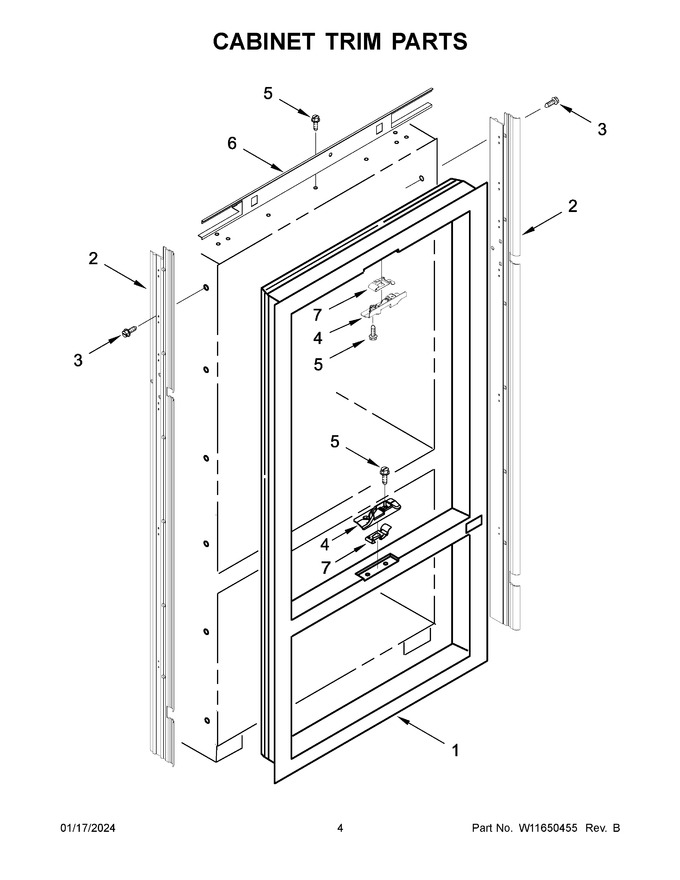

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIF8D105703322849269150008CB6CEED8 | Breaker, Trim (not Serviced) |
|
- | |||||
| 2 | W10714136 | Trim, Cabinet (side) Left Hand (black) |
|
$ 364.25 | |||||
| 3 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 4 | W10672299 | Block, Pivot Top (grey) |
|
$ 76.77 | |||||
| 5 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 6 | W11623180 | Trim, Cabinet (top) (charcoal Sparkle) (Replaces: W11577757) |
|
Immediately | $ 153.55 | ||||
| 7 | 2309230 | Contact, Mullion (top) |
|
$ 16.17 | |||||
| 2A | W10714135 | Trim, Cabinet (side) Right Hand (black) |
|
$ 364.25 | |||||
| 4A | W10672301 | Block, Pivot Bottom (grey) |
|
$ 76.77 | |||||
| 7A | 2309231 | Contact, Mullion (bottom) |
|
$ 54.31 |
