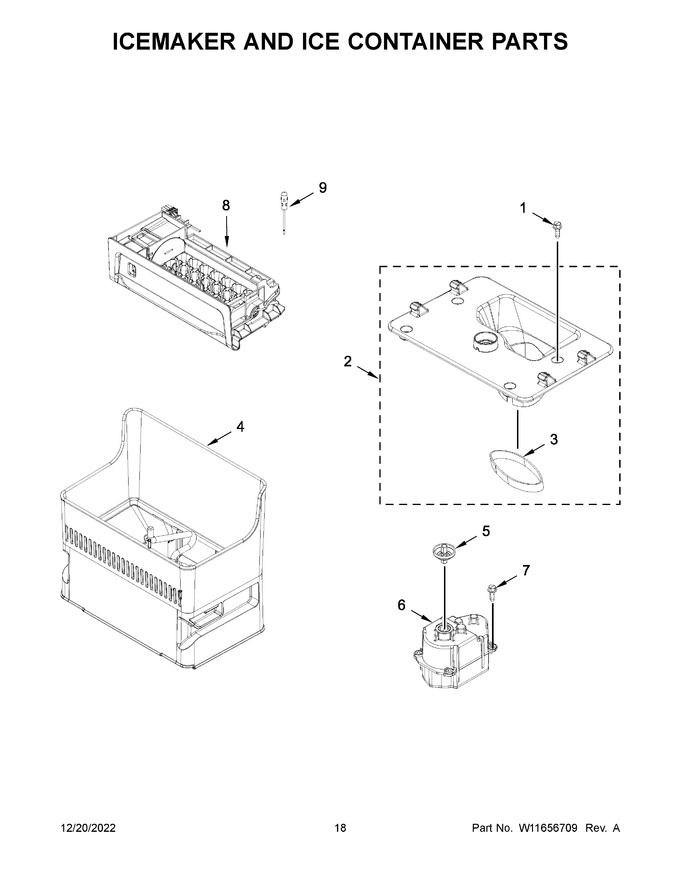

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 11.36 | ||||
| 2 | W11448633 | Plate, Ice Chute (Replaces: W10793257) |
|
$ 99.83 | |||||
| 3 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 27.68 | |||||
| 4 | W11574764 | Ice Container Assembly (Replaces: W11476068) |
|
$ 283.92 | |||||
| 5 | W11228132 | Shaft-motor (Replaces: W11363574) |
|
Immediately | $ 31.10 | ||||
| 6 | W10822606 | Motor, Dispenser (Replaces: W11185741) |
|
Immediately | $ 156.54 | ||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 8 | W11557001 | Icemaker Assembly (Replaces: W11391034) |
|
Immediately | $ 210.90 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 |
