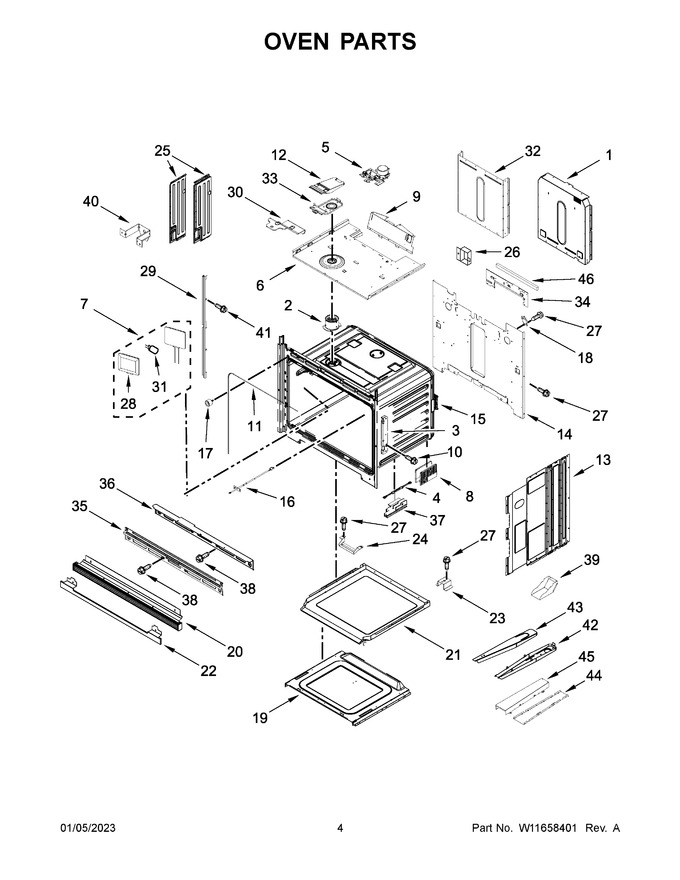

03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11165250		Duct, Chassis Back (upper)				$ 76.32
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 89.40
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 18.14
5	W11811612		Latch, Motorized   (Replaces: W11132456)			Immediately	$ 69.86
6	W11244456		Top, Chassis		Appelez-nous	-
7	W11292252		Assembly, Oven Light   (Replaces: W11205574)			Immediately	$ 107.48
8	W11598170		Foot, Base   (Replaces: W11245118)				$ 29.04
9	W10904163		Deflector, Blower			Immediately	$ 169.79
10	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
11	W11608109		Gasket, Cavity				$ 70.97
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 80.99
14	NP		Accessory Parts, Xhp1000xw White 10" Pedestal		Appelez-nous	-
15	NP		Accessory Parts, Xhp1000xw White 10" Pedestal		Appelez-nous	-
16	W11598120		Probe, Sensor   (Replaces: W11346074)			Immediately	$ 41.75
17	W11598125		Bumper & Screw   (Replaces: W11166315)				$ 23.37
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11598139		Base, Chassis   (Replaces: W11244454)		Appelez-nous	-
20	W11369891		Assembly, Bottom Vent (stainless)			Immediately	$ 106.92
21	W11244446		Duct, Bottom Chassis				$ 70.25
22	W11712432		Trim, Bottom Vent (black)   (Replaces: W11356754)				$ 89.95
23	W11135135		Support, Air Channel				$ 36.15
24	W11731183		Spacer, Chassis Bottom Duct   (Replaces: W11390667)				$ 38.85
25	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 74.06
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	7101P42660		Screw		Appelez-nous	-
28	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
29	W11235460		Cover, Side Trim (left)				$ 114.20
30	W11342780		Bracket, Top Front		Appelez-nous	-
31	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
32	W11134657		Duct, Chassis Back (lower)   (Replaces: W11219304)		Appelez-nous	-
33	W11256423		Base, Vent Exhaust		Appelez-nous	-
34	W11186652		Bracket, U-shape		Appelez-nous	-
35	W11235483		Vent, Center 27		Appelez-nous	-
36	W11334858		Vent, Top 27		Appelez-nous	-
37	W11598169		Foot, Chassis (left)   (Replaces: W11245114)				$ 29.70
38	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
39	W11256432		Deflector, Lower Back Exhaust		Appelez-nous	-
40	W11344645		Hat Bracket, Vent		Appelez-nous	-
41	W11602623		Screw   (Replaces: W11404000)				$ 14.23
42	W11256420		Base, Top Back Exhaust		Appelez-nous	-
43	W11256421		Cover, Top Back Exhaust		Appelez-nous	-
44	W11256430		Base, Lower Back Exhaust		Appelez-nous	-
45	W11256431		Cover, Lower Back Exhaust		Appelez-nous	-
46	W11211345		Foam, U-bracket		Appelez-nous	-
25A	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 74.06
29A	W11235461		Cover, Side Trim (right)				$ 114.20
37A	W11598168		Foot, Chassis (right)   (Replaces: W11245116)				$ 29.52
3A	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 89.29
NI	NP		Accessory Parts, Xhp1000xw White 10" Pedestal		Appelez-nous	-
NI	W11688568		Insulation, Wrap   (Replaces: W11244474)		Appelez-nous	-
NI	W11244475		Insulation, Back		Appelez-nous	-
