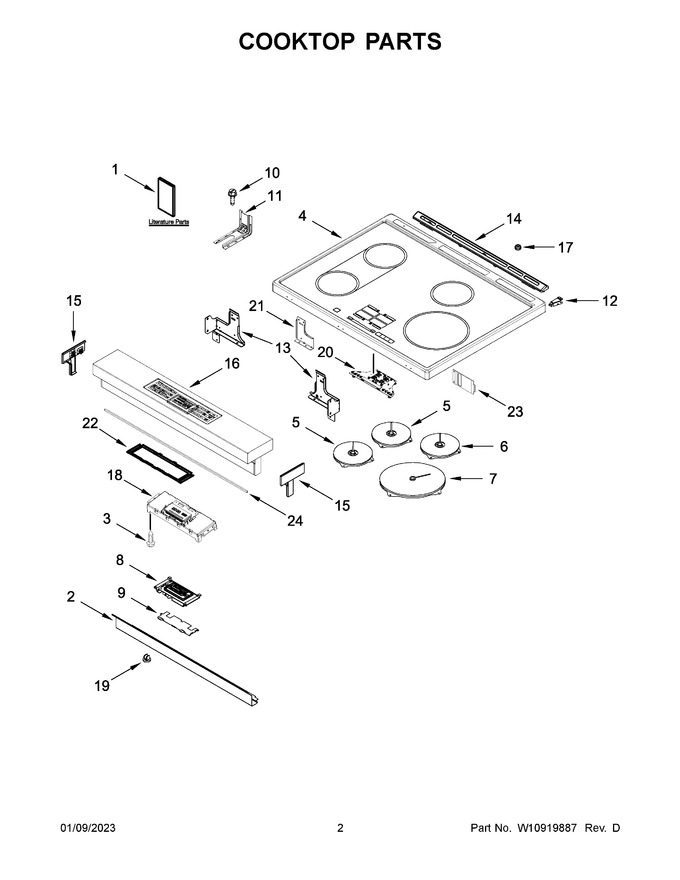

02 - Cooktop Parts
03 - Interior Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10744014 | Installation, Instructions |
|
- | |||||
| 2 | W10743281 | Bracket, Mounting (stainless) |
|
- | |||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10751485 | Cooktop (black) (Replaces: W10536318) |
|
$ 997.33 | |||||
| 5 | W11672688 | Element (left Front And Left Rear) (Replaces: W10636723) |
|
Immediately | $ 165.84 | ||||
| 6 | WPW10410580 | Hotplate (right Rear) (Replaces: W10410580) |
|
$ 255.85 | |||||
| 7 | WPW10410578 | Element (right Front) (Replaces: W10410578) |
|
$ 308.23 | |||||
| 8 | W11120573 | Assembly, Display (Replaces: W10759324) |
|
Immediately | $ 512.12 | ||||
| 9 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 14 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 145.75 | ||||
| 15 | W10557751 | Endcap (stainless (left)) |
|
$ 168.85 | |||||
| 16 | W11043339 | Console (stainless) (Replaces: W10901072) |
|
$ 820.72 | |||||
| 17 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 18 | W11296051 | Control, Electronic (maxwell) (Replaces: W11254198) |
|
$ 514.07 | |||||
| 19 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 20 | W11677629 | User, Interface (Replaces: W10808072) |
|
Immediately | $ 565.65 | ||||
| 21 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 22 | W10557780 | Bracket , Control |
|
$ 36.68 | |||||
| 23 | W10752321 | Shield, Keypad |
|
- | |||||
| 24 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 15A | W10557754 | Endcap (stainless (right)) |
|
$ 168.85 | |||||
| 1A | W11281983 | Use And Care Guide |
|
- | |||||
| 1B | W10844271 | Tech Sheet |
|
- | |||||
| 1C | W10902659 | Wiring Diagram |
|
- | |||||
| 1D | W10400064 | Quick Start Guide |
|
- | |||||
| 1E | W10400065 | Quick Start Guide (french) |
|
- | |||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W10908894 | Harness, Main |
|
Immediately | $ 251.01 | ||||
| NI | W10580316 | Harness, Bake Drawer |
|
Immediately | $ 185.69 | ||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 236.93 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 |
