01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

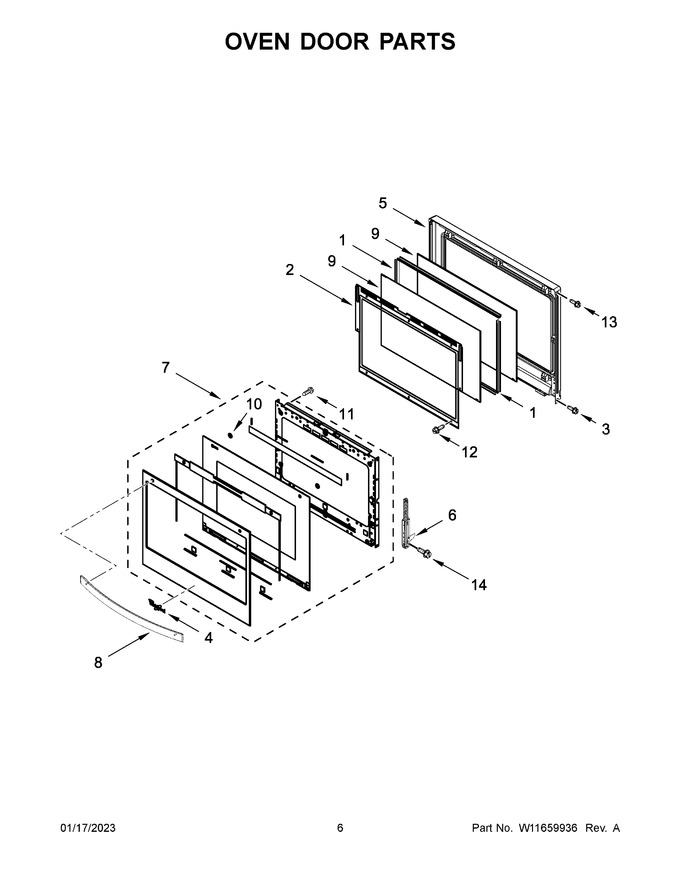

1	W11736672		Spacer, Air Divider   (Replaces: W11302731)			Immediately	$ 54.06
2	W11598188		Retainer, Air Divider Glass   (Replaces: W11204277)				$ 81.84
3	W11617225		Screw   (Replaces: W11290045)				$ 14.77
4	W11178521		Badge (badge)   (Replaces: W10884775)			Immediately	$ 63.13
5	W11598186		Liner Assembly   (Replaces: W11302593)				$ 371.00
6	W11296079		Hinge, Door (left)		Appelez-nous	-
7	W11600328		Door Assembly (black)   (Replaces: W11286345)		Appelez-nous	-
8	W11115278		Handle, Door (black)   (Replaces: W11022641)				$ 188.91
9	WPW10284902		Glass, Inner   (Replaces: W10618123)				$ 229.81
10	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
11	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
12	7101P42660		Screw		Appelez-nous	-
13	7101P37560		Screw		Appelez-nous	-
14	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
6A	W11296080		Hinge, Door (right)		Appelez-nous	-
7A	W11600334		Door Assembly (white)   (Replaces: W11286343)		Appelez-nous	-
7B	W11600331		Outer Door Assembly (stainless)   (Replaces: W11296060)				$ 513.79
8A	W11200667		Handle, Door (white)   (Replaces: W11022642)		Appelez-nous	-
8B	W11113204		Handle, Door (stainless)   (Replaces: W10880280)				$ 188.91
