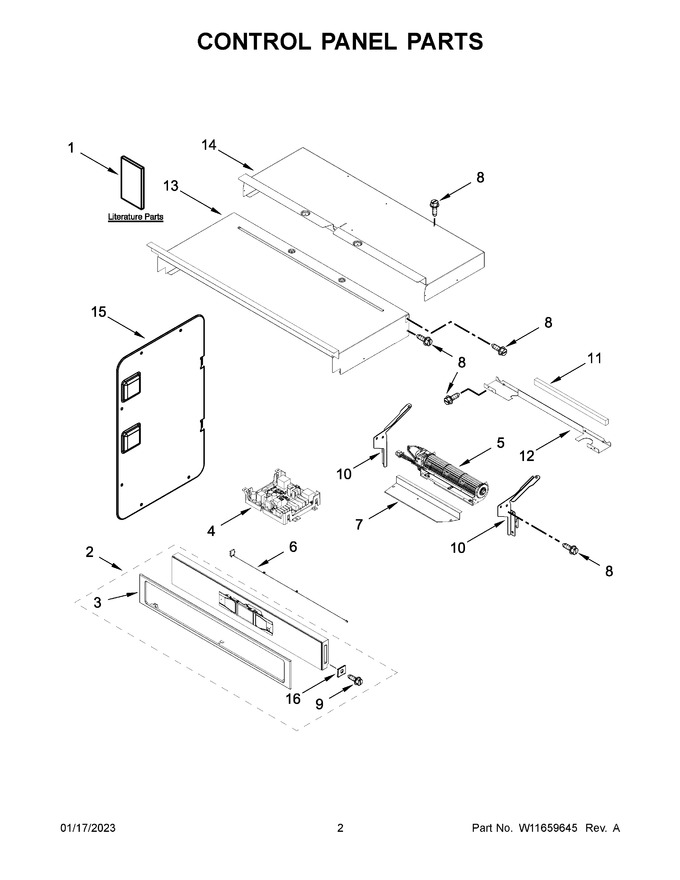

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11382204 Owner's Manual Appelez-nous -
2 W11600327 Assembly, Control Panel (includes Overlay) (black)   (Replaces: W11304448) Appelez-nous -
3 W11115276 Skin, Control Panel (black)   (Replaces: W11026968) Appelez-nous -
4 W11261167 Appliance Manager, Copernicus   (Replaces: W11253187) In-Stock Immediately $ 472.23

5 W11598119 Blower   (Replaces: W11397930) In-Stock Immediately $ 388.25

6 W11537624 Antenna   (Replaces: W11409842) Special Order $ 106.06

7 W10681157 Cover, Combo Blower Appelez-nous -
8 7101P42660 Screw Appelez-nous -
9 W11602625 Screw (black)   (Replaces: W11339492) Special Order $ 14.72

10 W10655463 Bracket, Blower (left) Appelez-nous -
11 W10491987 Block, Foam   (Replaces: 4451758) In-Stock Immediately $ 8.14

12 W11166802 Divider, Chassis Back Appelez-nous -
13 W10318159 Chassis, Cover Top Front 27 In Appelez-nous -
14 W11037652 Chassis, Cover Top Back 27 In Wifi Appelez-nous -
15 W10655467 Chassis, Combo Side Special Order $ 83.02

16 WP4450118 Nut   (Replaces: 4450118) Special Order $ 8.78

10A W10655462 Bracket, Blower (right) Appelez-nous -
1A W11419188 Quick Start Guide Appelez-nous -
1B W11416506 Tech Sheet Appelez-nous -
2A W11600333 Assembly, Control Panel (includes Overlay) (white)   (Replaces: W11304459) Appelez-nous -
3A W11200664 Skin, Control Panel (white)   (Replaces: W11026967) Appelez-nous -
NI 4448664 Clamp, Conduit Special Order $ 21.41

NI W11602626 Bag, Hardware   (Replaces: W11394923) Special Order $ 23.47

NI 4450800 Screw, Grounding Special Order $ 13.47

NI 16515 Clip, Harness   (Replaces: 313438) Special Order $ 20.53

NI W11356990 Harness, Communication Special Order $ 224.43

NI NP Accessory Parts, Xhp1000xw White 10" Pedestal Appelez-nous -
NI W11356991 Harness, Ground Console Combo Appelez-nous -
NI W11659376 Harness, Main   (Replaces: W11245676) Appelez-nous -
NI W11256629 Harness, Signal Appelez-nous -
NI W11727826 Harness, Door Latch   (Replaces: W11264646) Special Order $ 61.80
