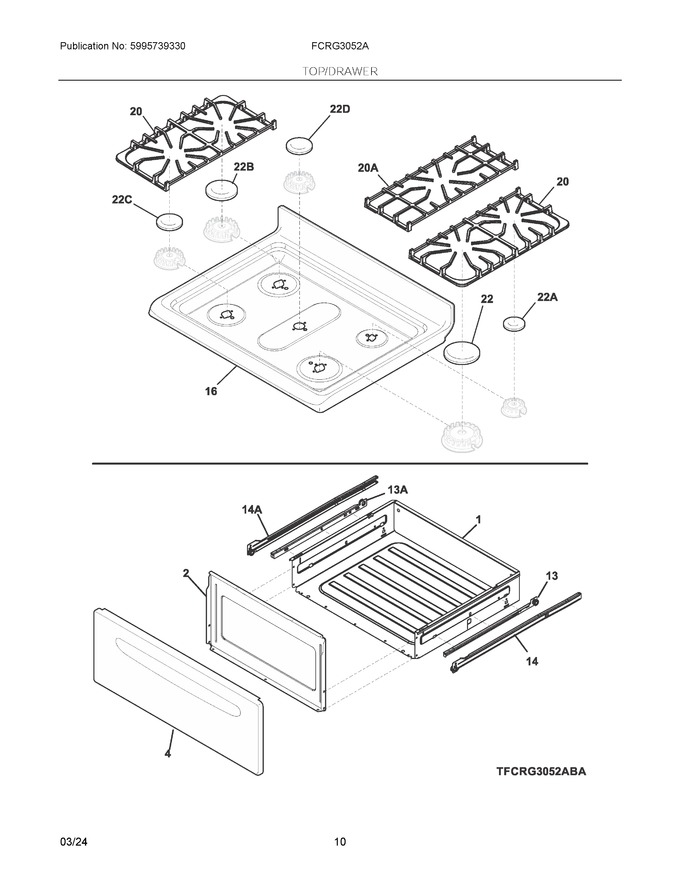

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 122.90
2	5304527988		Liner, Drawer			Immediately	$ 29.49
4	5304513124		Panel, Drawer, White				$ 100.95
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 18.54
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 28.65
16	316610005		Main Top, White				$ 246.49
20	5304526186		Grate, Left				$ 326.15
22	5304527846		Cap-burner, 17k, Black, Matte, 3mm				$ 31.17
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 32.19
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 53.31
20A	5304526187		Grate, Center				$ 211.50
20B	5304526188		Grate, Right				$ 211.50
22A	5304524590		Cap-burner, 5a, Black, Matte, 3mm				$ 21.06
22B	5304527844		Cap-burner, 12k, Black, Matte, 3mm				$ 21.27
22C	5304508442		Cap-burner, 9.5k, Black, Matte, 3mm   (Replaces: 5304527843)			Immediately	$ 40.61
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 80.33
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 14.96
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55

    View Diagram in Separate Window       Print Part List
