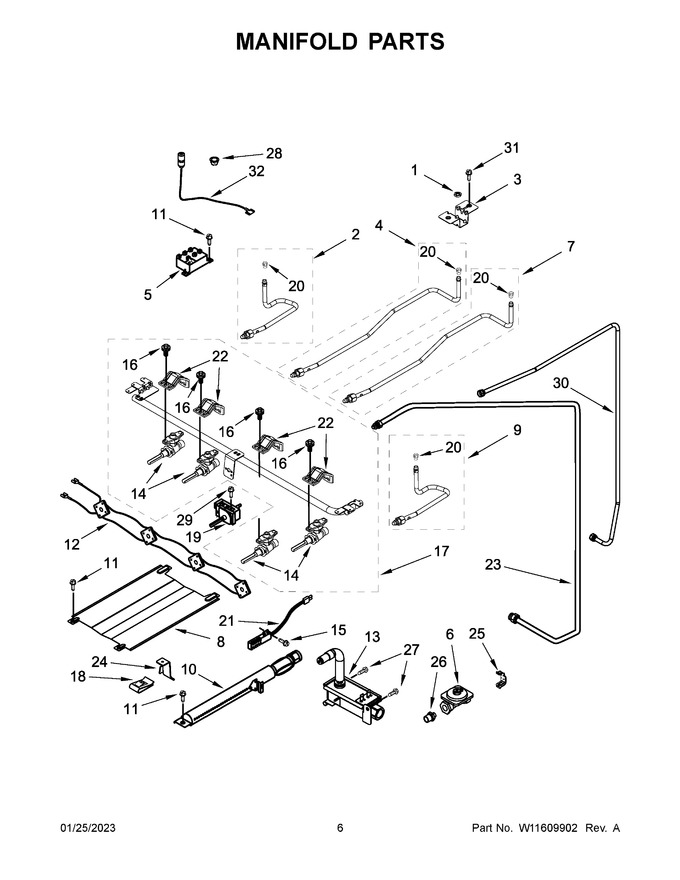

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10610297 | Nut |
|
- | |||||
| 2 | WP98017582 | Tubing, Gas (left Front) (Replaces: 98017582) |
|
$ 177.79 | |||||
| 3 | W11715913 | Bracket, Surface Burner (Replaces: W10122103) |
|
- | |||||
| 4 | WP98017359 | Tubing, Gas (right Rear) (Replaces: 98017359) |
|
$ 194.34 | |||||
| 5 | W11590249 | Java Tech Spark Module 4 Pos (Replaces: W11281166) |
|
$ 24.51 | |||||
| 6 | W10177394 | Regulator |
|
$ 318.17 | |||||
| 7 | WPW10110342 | Tubing, Gas (Replaces: W10110342) |
|
$ 193.11 | |||||
| 8 | W10212101 | Spreader, Flame |
|
$ 79.59 | |||||
| 9 | W11661107 | Tubing, Gas (right Front) (Replaces: W10110343) |
|
$ 132.42 | |||||
| 10 | WP98012138 | Burner, Oven (Replaces: 98012138) |
|
$ 234.42 | |||||
| 11 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 12 | W11562248 | Harness, Switch |
|
- | |||||
| 13 | WPW10205816 | Valve, Oven (Replaces: W10205816) |
|
$ 379.38 | |||||
| 14 | W11620105 | Valve, Saddle (Replaces: W11509554) |
|
- | |||||
| 15 | W11676351 | Screw (Replaces: 98005659) |
|
- | |||||
| 16 | 98017517 | Screw |
|
- | |||||
| 17 | W11509621 | Manifold Assembly |
|
- | |||||
| 18 | 98009179 | U-nut |
|
$ 14.03 | |||||
| 19 | W11673272 | Thermostat, Oven (Replaces: W10565875) |
|
$ 132.64 | |||||
| 20 | WP98017348 | Orifice, Natural (9.5k) (left Front And Right Rear) (Replaces: 98017348) |
|
$ 91.99 | |||||
| 21 | W11590294 | Igniter, Hot Surface (Replaces: W11208965) |
|
- | |||||
| 22 | 98017516 | Saddle, Bracket |
|
$ 93.53 | |||||
| 23 | W10177392 | Tubing (regulator To Oven Valve) |
|
- | |||||
| 24 | 98013314 | Locator, Burner |
|
- | |||||
| 25 | 98007410 | Bracket, Regulator |
|
- | |||||
| 26 | 98007431 | Fitting (3/8 In To 9/16 In) |
|
$ 129.01 | |||||
| 27 | 98013634 | Screw |
|
- | |||||
| 28 | WPW10278150 | Clip, Ignitor (Replaces: W10278150) |
|
$ 45.12 | |||||
| 29 | WP98008545 | Screw (black) (Replaces: 98008545) |
|
$ 18.60 | |||||
| 30 | WP98017171 | Tubing (manifold To Regulator) (Replaces: 98017171) |
|
$ 271.97 | |||||
| 31 | W10837674 | Screw (Replaces: W10146346) |
|
$ 8.05 | |||||
| 32 | WPW10209656 | Ignitor, Top (black) (Replaces: W10209656) |
|
Immediately | $ 85.25 | ||||
| 20A | WP98017587 | Orifice, Natural (7.5k) (right Front And Left Rear) (Replaces: 98017587) |
|
$ 94.06 | |||||
| 32A | WPW10209657 | Ignitor, Top (natural (left Rear)) (Replaces: W10209657) |
|
$ 56.66 | |||||
| NI | W11672513 | Lp Spud Kit (for Use With Lp) (Replaces: W10207842) |
|
$ 22.35 | |||||
| NI | NP | (parts Not Shown) |
|
- |
