View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner And Icemaker Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

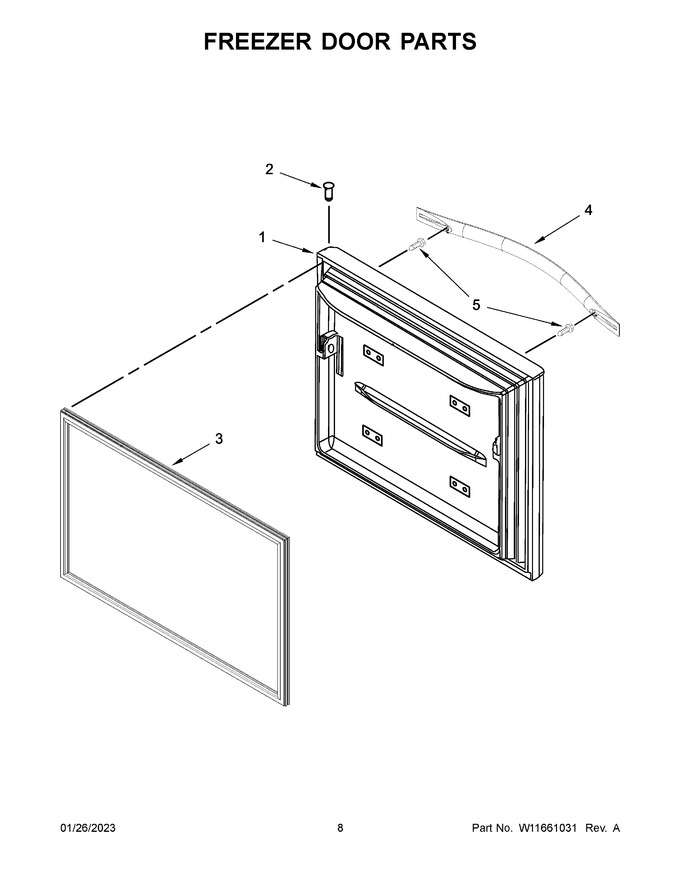

| 1 | LW10353182 | Freezer Door (includes Items 2 & 3) (white) (Replaces: W10353182) |
|
$ 609.55 | |||||
| 2 | W11544568 | Thimble, Top (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 3 | W10460611 | Gasket (beige) (Replaces: W11464962) |
|
Immediately | $ 304.19 | ||||
| 4 | W11125499 | Handle Assembly (white) |
|
$ 175.25 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 1A | LW10413530 | Freezer Door (includes Items 2 & 3) (black) (Replaces: W10413530) |
|
$ 496.53 | |||||
| 1B | LW10865766 | Freezer Door (includes Items 2 & 3) (black Stainless) (Replaces: W10865766) |
|
$ 834.37 | |||||
| 3A | W11625017 | Gasket (black) (Replaces: W11464961) |
|
$ 339.69 | |||||
| 4A | W11125500 | Handle Assembly (black) |
|
$ 175.25 | |||||
| 4B | W11199708 | Handle Assembly (black Stainless) (Replaces: W11125496) |
|
$ 183.99 |
