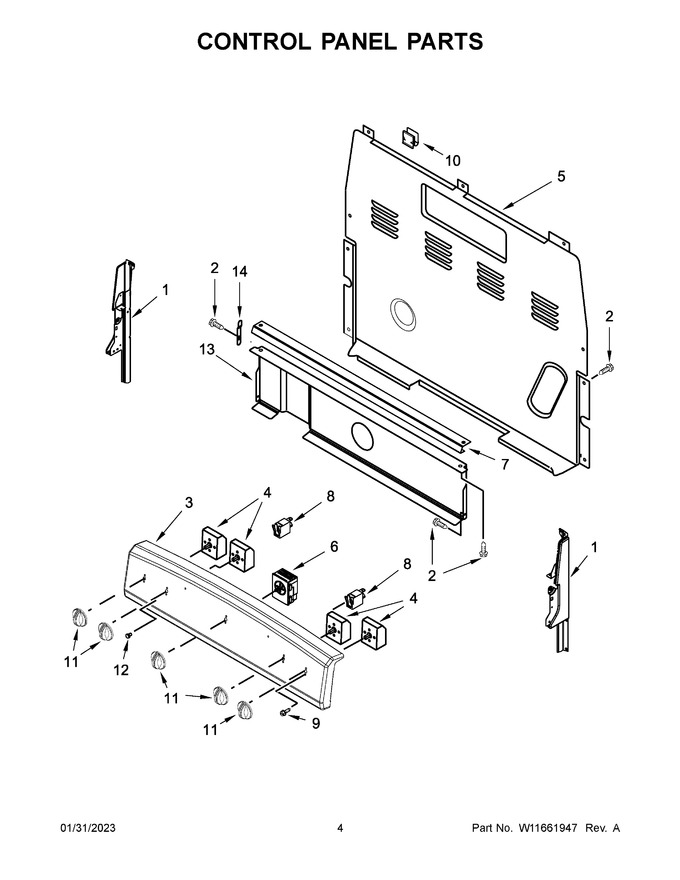

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
3	W11219378		Panel, Backguard (white)   (Replaces: W11134309)				$ 134.80
4	5500-287		Switch, Infinite (right Front And Left Rear)   (Replaces: 3148951)			Immediately	$ 52.39
5	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
6	WPW10466758		Control, Electronic (roc70)   (Replaces: W10466758)				$ 340.06
7	W10525121		Bracket, Console Mounting				$ 98.85
8	WP8523266		Indicator, Light (250v)   (Replaces: 8523266)				$ 117.50
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 12.66
11	WP9761962		Knob (white)   (Replaces: 9761962)			Immediately	$ 20.65
12	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
13	W10134247		Shield, Heat			Immediately	$ 358.82
14	3196200		Clip, Spring				$ 10.45
1A	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
4A	5500-287		Switch, Infinite (green) (left Front And Right Rear)   (Replaces: 3148953)			Immediately	$ 52.39
