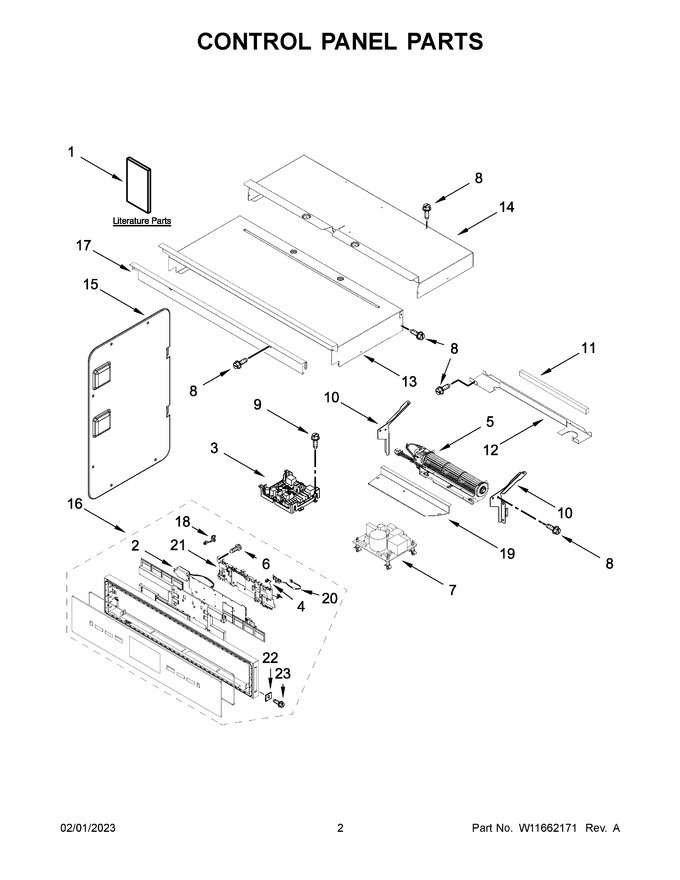

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11499878		Owner's Manual		Appelez-nous	-
2	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
3	W11448961		Appliance Manager, Copernicus   (Replaces: W11250487)			Immediately	$ 276.57
4	W10524350		Harness, Keypad (right To Center)				$ 78.21
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	W10489172		Screw				$ 11.98
7	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 317.35
8	7101P42660		Screw		Appelez-nous	-
9	7101P43460		Screw		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W11166802		Divider, Chassis Back		Appelez-nous	-
13	W10318158		Chassis, Cover Top Front 30 In		Appelez-nous	-
14	W10588732		Chassis, Cover Top Back 30 In				$ 225.86
15	W10655467		Chassis, Combo Side				$ 83.02
16	W11598176		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W11196585)		Appelez-nous	-
17	W10444127		Cover, 30" Compliment				$ 130.73
18	W10566973		Harness, Keypad (left To Center)				$ 82.19
19	W10681157		Cover, Combo Blower		Appelez-nous	-
20	W10575307		Jumper Harness, Power Supply			Immediately	$ 173.84
21	W10668510		Housing				$ 105.17
22	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
23	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11423731		Quick Start Guide		Appelez-nous	-
1B	W11399190		Tech Sheet		Appelez-nous	-
NI	NP		(parts Not Shown)		Appelez-nous	-
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 23.47
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	W11249917		Harness, Signal			Immediately	$ 180.09
NI	W11555167		Harness, Communication				$ 69.94
NI	W11578578		Harness, Interlock   (Replaces: W11555168)			Immediately	$ 127.79
NI	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 30.24
NI	W11539494		Harness, Inverter				$ 43.39
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 78.88
NI	W11537624		Antenna   (Replaces: W11409842)				$ 106.06
NI	W11226264		Strap, Ground		Appelez-nous	-
NI	4448664		Clamp, Conduit				$ 21.41
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11659367		Harness, Main		Appelez-nous	-
