SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

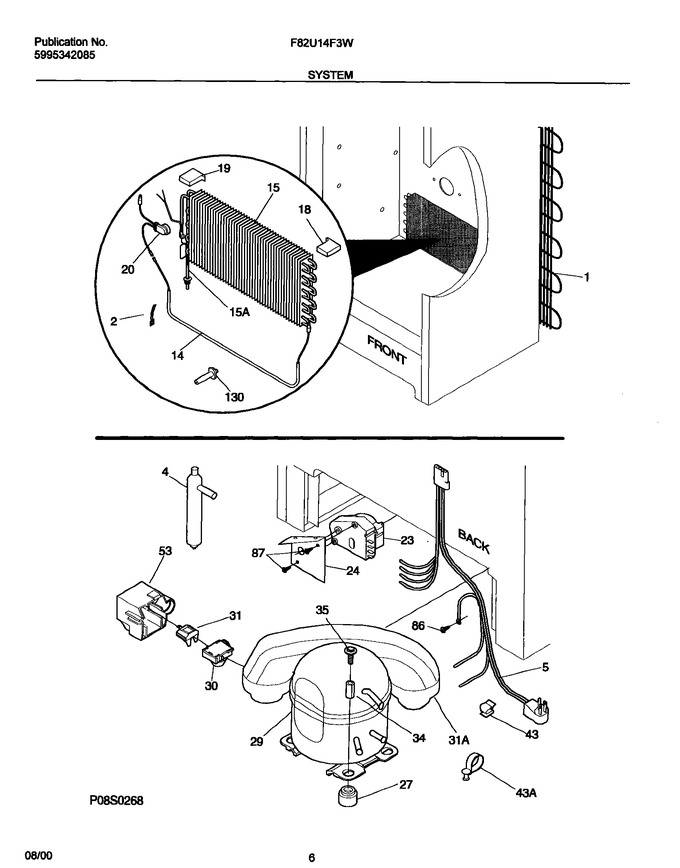

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 66.47
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 35.19
5	216560500		Harness-electrical		Appelez-nous	-
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 30.58
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor				$ 14.46
29	5304507765		Compressor Assy   (Replaces: 216557000)			Immediately	$ 752.48
30	216596700		Starter,factory Instal		Appelez-nous	-
31	216100116		Overload Protector,factory Instal		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
43	09950610		Clip		Appelez-nous	-
53	216347800		Cover, Compressor		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
130	216730400		Support-evaporator		Appelez-nous	-
15A	297348500		Heat Exchanger   (Replaces: 216565700)				$ 125.21
31A	5304428401		Pan-drain,production Compr   (Replaces: 216601800)				$ 316.58
43A	216629700		Clip-harness		Appelez-nous	-
F1	5300123788		Condenser				$ 706.44
F14	5304496687		Heater-defrost   (Replaces: 216740000)				$ 108.68
F15	297414800		Evaporator   (Replaces: 216737400)				$ 161.44
F23	5304518034		Timer   (Replaces: 216517400)			Immediately	$ 63.94
NI	216502500		Sleeve-tube Insert				$ 12.05

    View Diagram in Separate Window       Print Part List
