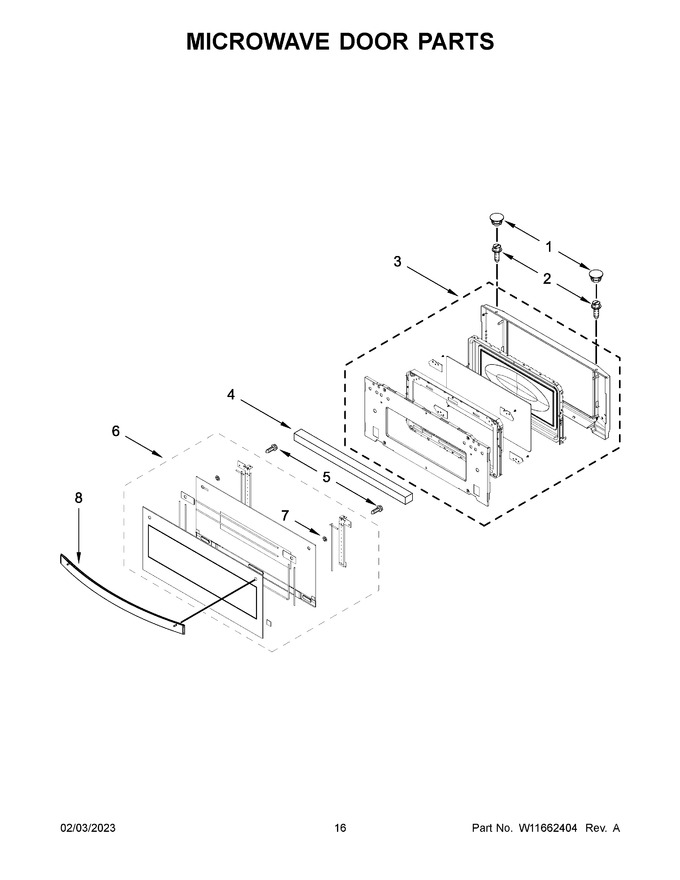

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	7101P33860		Screw		Appelez-nous	-
3	W11684570		Inner Door Assembly   (Replaces: W11328745)			Immediately	$ 593.74
4	W10359769		Foam, Door Handle				$ 14.76
5	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
6	W11600323		Outer Door Assembly (stainless)   (Replaces: W11300571)			Immediately	$ 620.68
7	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
8	W11110499		Handle Assembly (stainless)   (Replaces: W10875206)			Immediately	$ 188.20
6A	W11600349		Outer Door Assembly (black Stainless)   (Replaces: W11300572)		Appelez-nous	-
8A	W11110500		Handle Assembly (black Stainless)   (Replaces: W10903342)				$ 195.52
