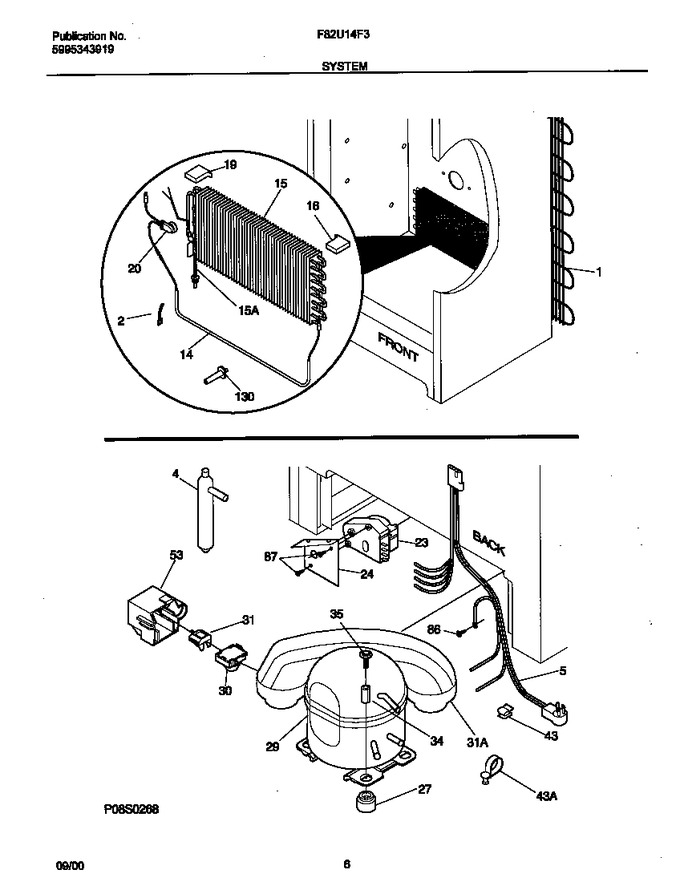

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300123788 | Condenser |
|
$ 706.44 | |||||
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 66.47 | ||||
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 35.19 | ||||
| 5 | 216766200 | Harness,electrical |
|
- | |||||
| 14 | 5304496687 | Heater-defrost (Replaces: 216740000) |
|
$ 108.68 | |||||
| 15 | 297414800 | Evaporator (Replaces: 216737400) |
|
$ 161.44 | |||||
| 15 | 297348500 | Heat Exchanger (Replaces: 216565700) |
|
$ 125.21 | |||||
| 18 | 216727600 | Insulator-evap,styrofoam |
|
- | |||||
| 19 | 216727700 | Insulator-evap,styrofoam |
|
- | |||||
| 20 | 297216600 | Thermostat-defrost (Replaces: 216731000) |
|
Immediately | $ 30.58 | ||||
| 23 | 5304518034 | Timer-defrost (Replaces: 216744400) |
|
Immediately | $ 63.94 | ||||
| 24 | 08016580 | Bracket |
|
- | |||||
| 27 | 216498900 | Grommet,compressor |
|
$ 14.46 | |||||
| 29 | 5304507765 | Compressor Assy (Replaces: 216557000) |
|
Immediately | $ 752.48 | ||||
| 30 | 216596700 | Starter,factory Instal |
|
- | |||||
| 31 | 216100116 | Overload Protector,factory Instal |
|
- | |||||
| 31 | 5304428401 | Pan-drain,production Compr (Replaces: 216601800) |
|
$ 316.58 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 43 | 09950610 | Clip |
|
- | |||||
| 43 | 216629700 | Clip-harness |
|
- | |||||
| 53 | 216347800 | Cover, Compressor |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 87 | 08037849 | Screw |
|
$ 8.98 | |||||
| 130 | 216730400 | Support-evaporator |
|
- | |||||
| *11885 | 216502500 | Sleeve-tube Insert |
|
$ 12.05 |
